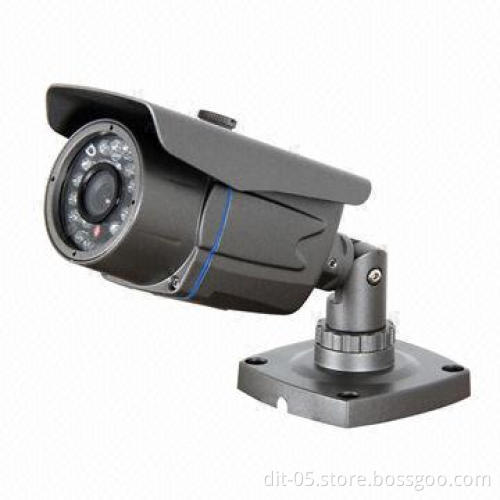

HD Security Camera with Night Vision

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Image sensor: 1/3-inch Sony powerful Effio CCD and DSP

Effective pixels:

Scanning system:

Scanning frequency:

Shutter speed:

Resolution: 700TVL (color), 780 (B/W)

S/N ratio: more than 48db (AGC off)

Synchronization system internal

White balance: ATW

Minimum illumination: 0 Lux (IR-LED on)

Lens standard: f = 3.6mm F1.6 fixed lens (option: 6mm/8mm F1.6)

OSD menu: N/C

Video test: N/C

IR LEDs: 24 pieces

IR distance: 30m, anti-IR LEDs exposure

Windows structure dual glasses structure (no IR diffusion and no fog)

Bracket management internal cable bracket management

Video output VBS 1.0 VPP (75Ω load)

Power supply: 12V DC ±10%, 24V AC ±10%

Maximum power consumption: 350mA/12V DC (IR-LED on)

Operating temperature: -100 to 500°C (-140 to 1,220°F)

Storage temperature: -300 to 600°C (-220 to 1,400°F)

Maximum operating humidity: 90% RH

NTSC (H x V): 976 x 494 pixels (480K pixels)

PAL (H x V): 976 x 582 pixels (570K pixels)

NTSC: 525 lines 2:1 interlace

PAL: 625 lines 2:1 interlace

NTSC: 15.734kHz (H), 59.94Hz (V)

PAL: 15.625kHz (H), 50Hz (V)

NTSC: 1/60 to 1/100,000 seconds

PAL: 1/50 to 1/100,000 seconds
