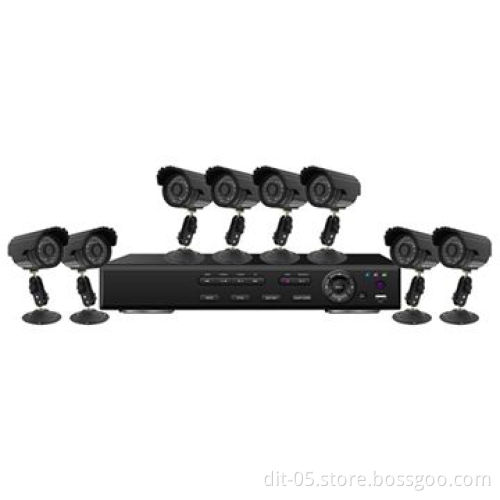

8CH DVR Kit with 2CH D1/6CH CIF, Alarm Interface, 8pcs 420TVL CMOS Camera

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Video compression: H.264/ADPCM

Video system: HI3515

Operating system: Linux 2.6

Video in: 8CH 1.0Vp-p, 75© impedance, BNC

Video out: 2CH, BNC x 1, (1.0Vp-p, 75©), VGA x 1

Audio input: 8CH, RCA

Audio output: 1CH, RCA

Display resolution: VGA x 1

Resolution: 1280x1024, CVBS x 1

PAL: 704x576
NTSC: 720x480

Frame rate:

PAL: 25fps
NTSC: 30fps

Record resolution:

CIF:
- PAL: 25fps
- NTSC: 30fps
HD1:
- PAL: 12fps
- NTSC: 15fps
D1:
- PAL: 6fps
- NTSC: 7fps or 2D1 + 6CIF

Frame rate:

CIF:
- PAL: 25fps
- NTSC: 30fps
HD1:
- PAL: 12fps
- NTSC: 15fps
D1:
- PAL: 6fps
- NTSC: 7fps or 2D1 + 6CIF

Feature-display: seq, privacy cover, digital zoom

Record modes: normal/manual/alarm/motion/schedule

HDD: 1 SATA interface, up to 2TB

Playback search: date/time/event/channel

USB interface: USB 2.0x3

PTZ control: 1 RS-485 interface (for PTZ control)

Alarm: 4CH-in/1CH-out

E-mail alarm: supported

Network interface: 1 RJ-45, 10/100Mbps self-adaptive Ethernetinterface

Network protocol: SMTP/UPNP/DDNS/PPPOE and more protocols

Network function: preview/download/playback/backup

Backup: USB HDD/network

Playback mode: 8CH

Recording pack time: normal 60mins

Power supply: 12V/3A

VGA:

Resolution: 1280x1024

Support smartphones

3G: Windows Mobile/Symbian/iPhone/Android/BlackBerry

AX size: 330x260x50mm

Weight: 2.6kg (without hard disk)

Camera specifications:

Image sensor: 1/4" CMOS
Effective pixels:
- NTSC: 512 (H)x492 (V)
- PAL: 500 (H)x582 (V)
Signal system: PAL/NTSC
Sync system: internal
Horizontal resolution: 420TVL
Lens: 3.6/6mm optional
Minimum illumination: 0 lux
Backlight compensation: auto
Gain control: auto
Shutter speed: 1/50 (1/60) to 1/100,000s
White balance: auto
S/N ratio: more than 48dB (AGC off)
Video output: 1.0Vp-p, 75© (BNC)
Power requirement: 12V DC
IR LEDs: 30pcs
Radiation distance: 10 to 15m
Operation temperatures: -10 to 50°C

PAL: 704x576

NTSC: 720x480

PAL: 25fps

NTSC: 30fps

CIF:

PAL: 25fps
NTSC: 30fps

HD1:

PAL: 12fps
NTSC: 15fps

D1:

PAL: 6fps
NTSC: 7fps or 2D1 + 6CIF

PAL: 25fps

NTSC: 30fps

PAL: 12fps

NTSC: 15fps

PAL: 6fps

NTSC: 7fps or 2D1 + 6CIF

CIF:

PAL: 25fps
NTSC: 30fps

HD1:

PAL: 12fps
NTSC: 15fps

D1:

PAL: 6fps
NTSC: 7fps or 2D1 + 6CIF

PAL: 25fps

NTSC: 30fps

PAL: 12fps

NTSC: 15fps

PAL: 6fps

NTSC: 7fps or 2D1 + 6CIF

Resolution: 1280x1024

Image sensor: 1/4" CMOS

Effective pixels:

NTSC: 512 (H)x492 (V)
PAL: 500 (H)x582 (V)

Signal system: PAL/NTSC

Sync system: internal

Horizontal resolution: 420TVL

Lens: 3.6/6mm optional

Minimum illumination: 0 lux

Backlight compensation: auto

Gain control: auto

Shutter speed: 1/50 (1/60) to 1/100,000s

White balance: auto

S/N ratio: more than 48dB (AGC off)

Power requirement: 12V DC

IR LEDs: 30pcs

Radiation distance: 10 to 15m

Operation temperatures: -10 to 50°C

NTSC: 512 (H)x492 (V)

PAL: 500 (H)x582 (V)
