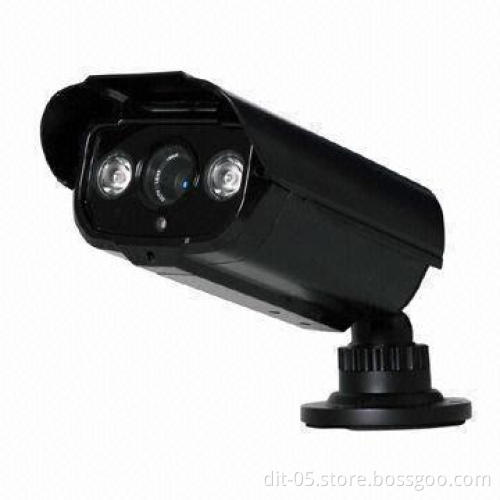

1/3-inch CCD Camera with Sony Ex-view HAD II

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT or LC at Sight

Product Description

Specifications:

OSD menu, support multi-language
3D DNR
Smart motion detection, privacy marking
Definition and brightness adjustable
LCD CRT optional
IP66
IR distance: 70 to 80m
Image sensor: 1/3-inch Sony ex-view HADⅡCCD
Horizontal resolution: 650TVL
Illumination: 0 Lux (IR on)
Effective pixels:
- PAL (H x V): 976 x 582 pixels
- NTSC (H x V): 976 x 494 pixels
Electronic shutter: 1/50 (1/60) to 1/100,000 seconds
Synchronization system: synchronization in
Menu display: many kinds of language optional
HLI: on/off menu (optional)
S/N ratio: ≥48dB
DNR: 2D 3D DNR
DSS: off/2X/4X/8X/16X/32X/256X (optional)
LSC: 0 to 50 (optional)
Mirror: off/right and left/up and down/rotation (optional)
Privacy covered 8 areas
Motion detecting: smart tracking
White balance: auto
Infrared LED: 2 pieces 42-mil high-power array infrared lamp
IR output power: 4W
Infrared wavelengths: 850nm
Day and night: color/black and white/automatic/external control
Focal Length: 16mm/F1.2 CS lens (with standard) 8, 12, 25mm (optional)
Video output: 1Vp-p, 75Ω (BNC）
Input voltage: 12V DC ± 15%, 12V DC/24V AC (optional)
Working temperature range: -10 to 50°C (max 90%)
Storage temperature range: -20 to 60°C (max 90%)
Waterproof level: IP66
