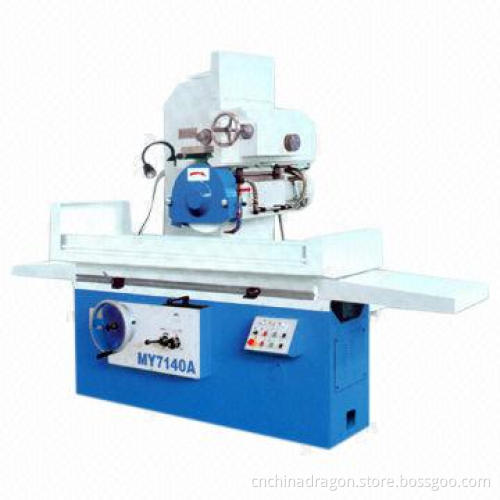

Surface Grinder with 9.2kW Full-load Power, 2,280 x 1,410 x 2,315mm Overall Dimensions
  • Surface Grinder with 9.2kW Full-load Power, 2,280 x 1,410 x 2,315mm Overall Dimensions
Surface Grinder with 9.2kW Full-load Power, 2,280 x 1,410 x 2,315mm Overall Dimensions

Surface Grinder with 9.2kW Full-load Power, 2,280 x 1,410 x 2,315mm Overall Dimensions

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Table:
    • Width of working surface of table: 400mm
    • Length of working surface of table: 1,000mm
    • Table longitudinal travel: 1,100mm
    • Quantity of table T-slot: 3
    • Width of T-slot: 18
    • Table longitudinal feed: 3 to 25m/minute
  • Feed system:
    • Distance from spindle axis to working surface of table: maximum600mm, minimum 155mm
    • Manual cross feed per grad: 0.05mm
    • Manual cross feed per rev: 3mm
    • Cross-feed speed: 0.3 to 2m/minute
    • Cross-feed travel: 460mm
    • Grinding head interrupted feed per stroke (steeples speed): 5to 25mm
    • Manual vertical feed for wheel head per grad: 0.005mm
    • Manual vertical feed for wheel head per rev: 0.5mm
    • Rapid wheel head feed speed: 350mm/minute
  • Grinding wheel
    • Wheel dimensions (D x W x D): 400 x 50 x 203mm
    • Spindle speed: 1,440r/min
  • Hydraulic system
    • Working pressure: 1 to 1.2MPa
    • Motor power of oil pump: 3kW
    • Lubrication pressure: 0.2 to 0.3MPa
  • Power
    • Full-load power: 9.2kW
    • Grinding spindle motor: 5.5kW
    • Oil pump motor: 3kW
    • Elevating motor of wheel head: 0.55kW
    • Cooling pump motor: 0.12kW
  • Size and weight
    • Overall dimensions (L x W x H): 2,280 x 1,410 x 2,315mm
    • Net weight: 3,500kg
    • Maximum carrying capacity: 500kg
  • Machining range:
    • Length: 1,000mm
    • Width: 400mm
    • Height (including magnetic table): 400mm
  • Width of working surface of table: 400mm
  • Length of working surface of table: 1,000mm
  • Table longitudinal travel: 1,100mm
  • Quantity of table T-slot: 3
  • Width of T-slot: 18
  • Table longitudinal feed: 3 to 25m/minute
  • Distance from spindle axis to working surface of table: maximum600mm, minimum 155mm
  • Manual cross feed per grad: 0.05mm
  • Manual cross feed per rev: 3mm
  • Cross-feed speed: 0.3 to 2m/minute
  • Cross-feed travel: 460mm
  • Grinding head interrupted feed per stroke (steeples speed): 5to 25mm
  • Manual vertical feed for wheel head per grad: 0.005mm
  • Manual vertical feed for wheel head per rev: 0.5mm
  • Rapid wheel head feed speed: 350mm/minute
  • Wheel dimensions (D x W x D): 400 x 50 x 203mm
  • Spindle speed: 1,440r/min
  • Working pressure: 1 to 1.2MPa
  • Motor power of oil pump: 3kW
  • Lubrication pressure: 0.2 to 0.3MPa
  • Full-load power: 9.2kW
  • Grinding spindle motor: 5.5kW
  • Oil pump motor: 3kW
  • Elevating motor of wheel head: 0.55kW
  • Cooling pump motor: 0.12kW
  • Overall dimensions (L x W x H): 2,280 x 1,410 x 2,315mm
  • Net weight: 3,500kg
  • Maximum carrying capacity: 500kg
  • Length: 1,000mm
  • Width: 400mm
  • Height (including magnetic table): 400mm
