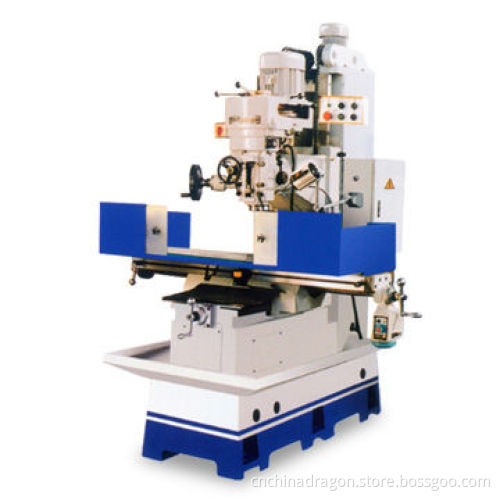

Bed Type Vertical Milling Machine, with 760mm Table Longitude Travel of and 535mm Cross Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size: 254 x 1,270

Table longitude travel: 760

Table cross travel: 535

Milling head vertical travel: 405

Distance from spindle to table: 150 to 600

Milling head:

Spindle speed:

Quill power feed: 0.04/0.08/0.15mm/rev.

Package size (cm): one machine /1 package: 180 x 150 x 240

Two machines/1 package: 220 x 150 x 240

G.W: one machine: 1,900kg, two machines: 3,900kg

Motor power: 3hp

Spindle taper: R8

Quill travel: 127

Standard: 16 steps, 50Hz: 65 to 4,500, 60Hz: 80 to 5,440

Optional: variable: 65 to 4,200
