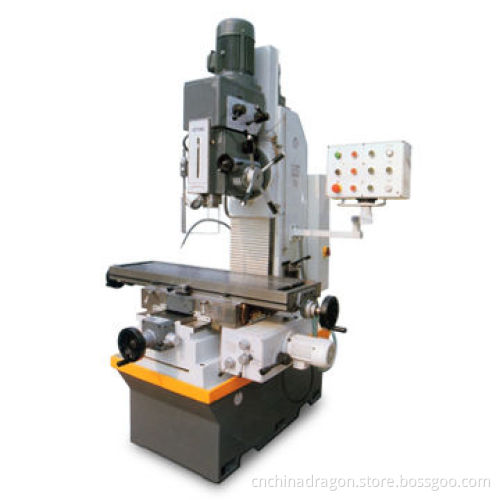

Milling/Drilling Machine with Maximum Drilling Diameter of 50mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum drilling diameter: 50mm

Maximum end milling width: 125mm

Maximum vertical milling diameter: 32mm

Distance spindle nose to table surface: 50-580mm

Spindle speeds range: 94-2256 (16)

Spindle travel: 180mm

Spindle feed speed: 0.1, 0.15, 0.3

Table size: 1,220 x 360mm

Table travel: 600 x 360mm

Overall dimensions: 1,730 x 1,730 x 2,300mm

Motor: 1.5/2.4kW

N.W/G.W.: 1,500/1,650kg
