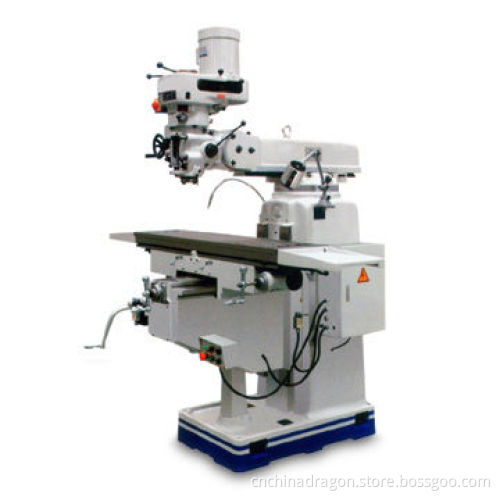

Universal Radial Milling Machine, Long Travel 840mm, Cross Travel 368mm
  • Universal Radial Milling Machine, Long Travel 840mm, Cross Travel 368mm
Universal Radial Milling Machine, Long Travel 840mm, Cross Travel 368mm

Universal Radial Milling Machine, Long Travel 840mm, Cross Travel 368mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Table size: 330 x 1,370(13 x 54)
  • Long travel: 840mm
  • Cross travel: 368mm
  • Vertrical travel: 450mm
  • T-slot No. and size: 3 x 16mm
  • Ram travel: 500mm
  • Distance from spindle nose to table surface: 0-450mm
  • Spindle hole taper
  • Standard: ISO40
  • Spindle travel: 127mm
  • Spindle speed
    • Standard: 16(shiftgrade) 50Hz: 65-4,500 60Hz: 80-5,440
  • Optional(variable)speed: 65-3,750
  • Auto. quill feed:
    • Threeteps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • Spindle motor: 3.75kw/5hp
  • Head swivel: 90°
  • Head tilting: 45°
  • Dimension of package:
    • One miller per case: 1,800 x 2,016 x 2,180
    • Two miller per case: 1,800 x 2,200 x 2,180
    • Three miller per case
  • G.W/set: 2,300kg
  • Standard: 16(shiftgrade) 50Hz: 65-4,500 60Hz: 80-5,440
  • Threeteps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • One miller per case: 1,800 x 2,016 x 2,180
  • Two miller per case: 1,800 x 2,200 x 2,180
  • Three miller per case
