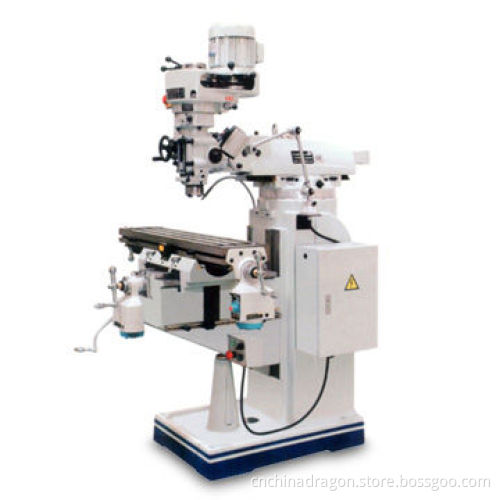

Universal Radoa Milling Machine, Long Travel 650mm, Cross Travel 305mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size: 230 x 1,067(9x42)

Long travel: 650mm

Cross travel: 305mm

Vertrical travel: 400mm

T-slot No. and size: 3 x 16mm

Ram travel: 312mm

Distance from spindle nose to table surface: 15 to 415mm

Spindle hole taper:

Spindle travel: 127mm

Spindle speed:

Standard:

16 speeds(shiftgrade)

50Hz: 65-4500

60Hz: 80-5440

Standard: R8

Optional: ISO40/30

Optiond((variable): 65-4500

Auto. Quill feed:

Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution

Spindle motor: 2.25kw/3hp

Head swivel: 90°

Head tilting: 45°

Dimension of package:

One miller per case

Two miller per case

Three miller per case

G.W/set: 1,100kg
