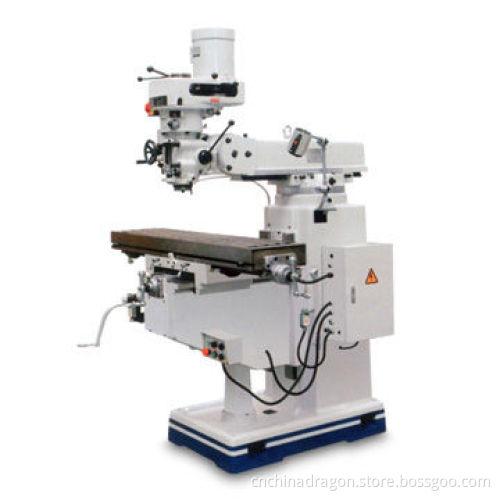

Universal Radial Milling Machine, Long Travel 1,000mm, Cross Travel 380mm
  • Universal Radial Milling Machine, Long Travel 1,000mm, Cross Travel 380mm
Universal Radial Milling Machine, Long Travel 1,000mm, Cross Travel 380mm

Universal Radial Milling Machine, Long Travel 1,000mm, Cross Travel 380mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Table size: 305 x 1,500(12 x 60)
  • Long travel: 1,000mm
  • Cross travel: 380mm
  • Vertrical travel: 430mm
  • T-slot No. and size: 3 x 16mm
  • Ram travel: 500mm
  • Distance from spindle nose to table surface: 0-435mm
  • Spindle hole taper
    • Standard: R8
    • Optional: ISO40
  • Spindle travel: 127mm
  • Spindle speed:
    • Standard: 16 speeds(shift grade) 50Hz: 65-4,500 60Hz:80-3,750
  • Optiond((variable): 065-4500
  • Auto. quill feed:
    • Threesteps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • Spindle motor: 3.75kw/5hp
  • Head swivel90°
  • Head tilting: 45°
  • Dimension of package:
    • One miller per case
    • Two miller per case
    • Three miller per case
  • G.W/set 1750
  • Standard: R8
  • Optional: ISO40
  • Standard: 16 speeds(shift grade) 50Hz: 65-4,500 60Hz:80-3,750
  • Threesteps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • One miller per case
  • Two miller per case
  • Three miller per case
