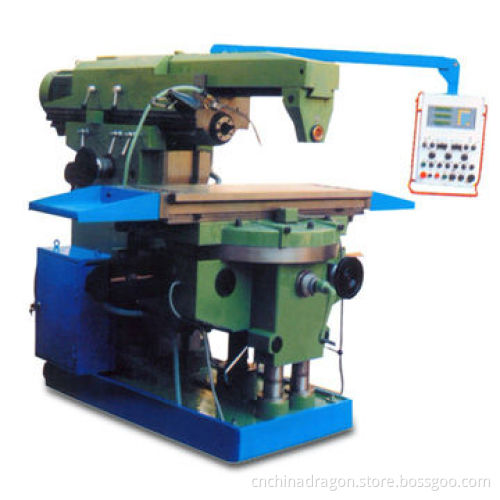

RAM-type Horizontal Universal Milling Machine, 1,000mm Longitudinal Travel and 500m Cross Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Working table (W x L): 500 x 1,435mm

T-slot number: 5

Width: 18mm

Distance: 80mm

Travel of table travel of RAM longitudinal: 1,000mm

Vertical: 400mm

Cross travel of RAM: 500

The distance between the spindle central line and table surface: 50 (minimum), 50 (maximum)

The distance between spindle end surface and main gateway of bed: 100-600

Spindle end diameter: 128.57mm

Spindle speeds range: 30-1,462rpm

Number: high and low-infinitely variable speeds

Feed range of table and RAM longitudinal: 10-2,000mm/minimum

Cross: 10-2,000mm/minimum

Vertical: 5-1,000mm/minimum

Maximum rotary angle of table: ±45°

Number of feeds: infinitely variable

Spindle power: 11kW

Feed motor speed: X, Y: 15, Z: 20rpm

Resolution of digital display: 0.005mm (for XS series)

Positioning accuracy: 0.05mm (for XS series)

Reset accuracy: ±0.01mm (for XS series)

Maximum hearing weight of table: 1,500kg

Overal dimensions: 2,500 x 2,400 x 2,100mm

Net weight: 4,500kg
