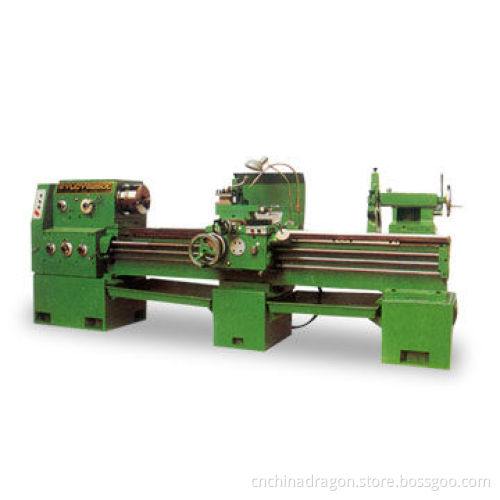

Lathe Machine, Swing Over Carriage: 300mm (12")

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Swing over bed: 500mm (20")

Swing over gap: 710mm (28")

Effective width of gap: 240mm (10")

Swing over carriage: 300mm (12")

Maximum length of workpiece: 750, 1000, 1500, 2000, 3000mm（29", 40", 60", 80", 118"）

Range of spindle speeds: 24 steps 9-1600r.p.m

Spindle tape: MT6

Spindle hole: 52mm

Spindle nose: C-6

Longitudinal feeds: 93 kinds 0.028-6.43mm/rev

Cross feeds: 93 kinds 0.012-2.73mm/rev

Lead screw pitch: 12mm

Metric thread range: 48 kinds 0.5-224mm

Inch thread range: 48 kinds 72-1/8 T.P.I

Module thread range: 42 kinds 0.5-112 NN

Diameter pitch thread range: 45 Kinds 56-1/4 DP

Diameter of tailstock quill: 75mm

Morse taper of tailstock quill: No.5

Max travel of tailstock quill: 150mm (6")

Main motor power: 7.5kW

Machine overall dimensions:

750mm: 2375 x 1043 x 1325mm

1000mm: 2625 x 1043 x 1325mm

1500mm: 3125 x 1043 x 1325mm

2000mm: 3625 x 1043 x 1325mm

3000mm: 4625 x 1043 x 1325mm
