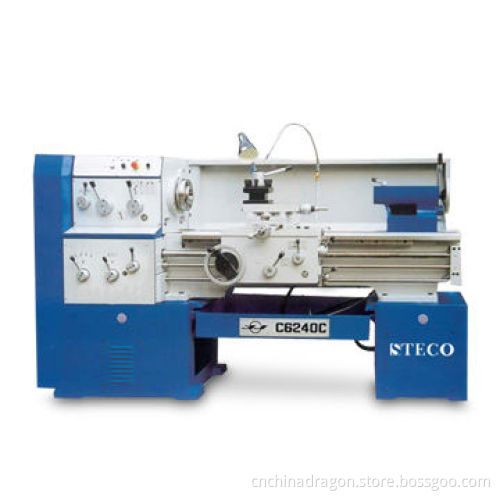

Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap
  • Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap
  • Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap
Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap
Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap

Lathe Machine, 4kW Main Motor Power and 520 Swing in Gap

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Swing over bed: 360
    • Swing over-cross slide: 190
    • Swing in gap: 520
    • Distance between centers: 750, 1,000, 1,500mm
    • Width of bed: 360mm
  • Headstock:
    • Spindle nose: C6
    • Spindle bore: 52mm
    • Taper of spindle bore MT6
    • Range of spindle speed: 40 to 1,400rpm (9 steps)
  • Feeds and threads:
    • Travel of compound rest: 95mm (maximum)
    • Travel of cross slide: 180mm (maximum)
    • Metric threads range: 0.25 to 14mm (20 kinds)
    • Inch threads range: 2 to 40 inches
    • Diametrical pitches range: 0.5 to 3.55mm (11 kinds)
  • Tailstock:
    • Tailstock sleeve: 65mm (diameter)
    • Travel of tail stock sleeve: 140mm
    • Morse taper of tail stock sleeve: MT4
  • Motor:
    • Power of main motor: 4kW
  • Dimensions and weight:
    • Packing size (L x W x H):
      • 750mm: 2,220 x 1,150 x 1,590mm
      • 1,000mm: 2,470 x 1,150 x 1,590mm
      • 1,500mm: 2,970 x 1,150 x 1,590mm
  • Net weight/gross weight:
    • 750mm: 1,350/2,000
    • 1,000mm: 1,450/2,100
    • 1,500mm: 1,600/2,250
  • Swing over bed: 360
  • Swing over-cross slide: 190
  • Swing in gap: 520
  • Distance between centers: 750, 1,000, 1,500mm
  • Width of bed: 360mm
  • Spindle nose: C6
  • Spindle bore: 52mm
  • Taper of spindle bore MT6
  • Range of spindle speed: 40 to 1,400rpm (9 steps)
  • Travel of compound rest: 95mm (maximum)
  • Travel of cross slide: 180mm (maximum)
  • Metric threads range: 0.25 to 14mm (20 kinds)
  • Inch threads range: 2 to 40 inches
  • Diametrical pitches range: 0.5 to 3.55mm (11 kinds)
  • Tailstock sleeve: 65mm (diameter)
  • Travel of tail stock sleeve: 140mm
  • Morse taper of tail stock sleeve: MT4
  • Power of main motor: 4kW
  • Packing size (L x W x H):
    • 750mm: 2,220 x 1,150 x 1,590mm
    • 1,000mm: 2,470 x 1,150 x 1,590mm
    • 1,500mm: 2,970 x 1,150 x 1,590mm
  • 750mm: 2,220 x 1,150 x 1,590mm
  • 1,000mm: 2,470 x 1,150 x 1,590mm
  • 1,500mm: 2,970 x 1,150 x 1,590mm
  • 750mm: 1,350/2,000
  • 1,000mm: 1,450/2,100
  • 1,500mm: 1,600/2,250
