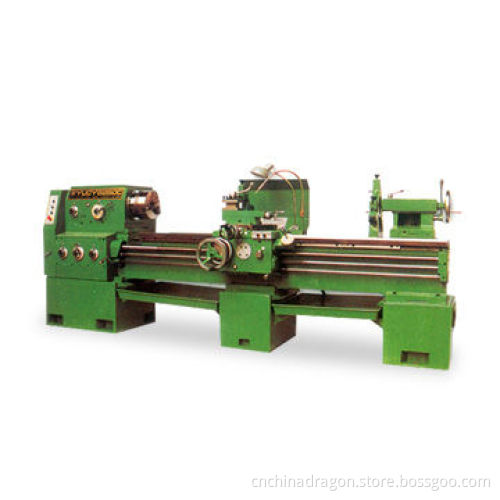

Lathe Machine with 9 to 1,600rpm Spindle Speeds and 500mm Swing Over Bed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Swing over bed: 500mm (20 inches)

Swing over gap: 710mm (28 inches)

Effective width of gap: 240mm (10 inches)

Swing over carriage: 300mm (12 inches)

Maximum lengths of workpiece: 750, 1,000, 1,500, 2,000 and 3,000mm (29, 40, 60, 80, 118 inches)

Range of spindle speeds: 24 steps 9 to 1,600rpm

Spindle: M6, M90 no. (1:20)

Spindle hole: 52mm

Spindle nose: C-6

Longitudinal feeds 93 kinds 0.028 to 6.43mm/rev

Cross feeds 93 kinds: 0.012 to 2.73mm/rev

Standard accessories:

Lead screw pitch: 12mm

Three jaw chuck metric thread range 48 kinds: 0.5 to 224

Four jaw chuck inch thread range 48 kinds: 72 to 1/8TPI

Driving plate module thread range 42 kinds: 0.5 to 112

Face plate diametrical pitch thread range 45 kinds: 56-1/4DP

Follower rest diameter of tailstock quill: 75mm

Steady rest morse taper of tailstock quill no.5

Live center maximum travel of tailstock quill: 150mm (6 inches)

Coolant system main motor power: 7.5kW

Working light machine overall dimensions:

750 = 2,375 x 1,043 x 1,275mm

1,000 = 2,625 x 1,043 x 1,275mm

1,500 = 3,125 x 1,043 x 1,275mm

2,000 = 3,625 x 1,043 x 1,275mm

3,000 = 4,625 x 1,043 x 1,275mm
