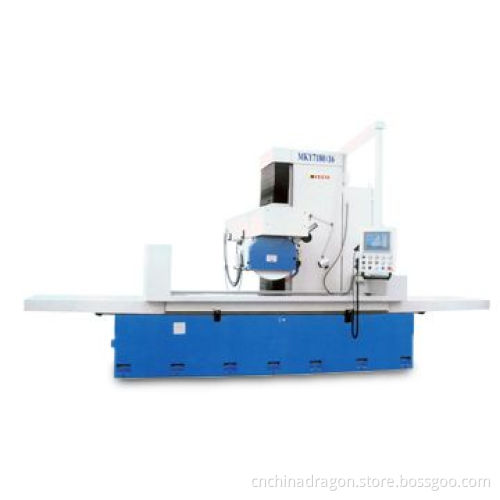

CNC Surface Grinder, with Table Size of 800 x 2,000mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size: 800 x 2,000 (mm)

Table longitudinal travel: 2,100 (mm)

Table T slots number: 3

Table T slots width: 28 (mm)

Longitudinal feed of table: 3 to 25m/min

Distance from spindle center to table surface Per grad: 980(mm)

Per rev.: 180 (mm)

Cross feed of electronic hand wheel per grad: 0.0025mm

Cross feed of electeonic hand graduated to: 0.25 (mm)

Cross feed speed: 0 to 5m/min

Cross feed traverse: 880 (mm)

Cross feed vertical feed speed: 0 to 0.6

Grinding head feed of vertical handwheel (per rev.): 0.0025(mm)

Grinding head feed of vertical handwheel (per div.): 0.25(mm)

Grinding wheel size: 450 x 75 x 203 (mm)

Grinding wheel rotating speed: 1,440 (r/min)

Working pressure: 2.4 to 2.8 (Mpa)

Lubricate pressure: 0.1 to 0.3 (Mpa)

Main motor: 24.6 (kW)

Grinding wheel spindle motor: 15 (kW)

Oil pump motor: 7.5 (kW)

Cross feed motor: 1 (kW)

Grind heed lift motor power: 1 (kW)

Coolant pump motor power: 0.25 (kW)

Package dimensions: 5,500 x 2,400 x 2,900 (mm)

Machine weight: 10,800/11,800 (kg)
