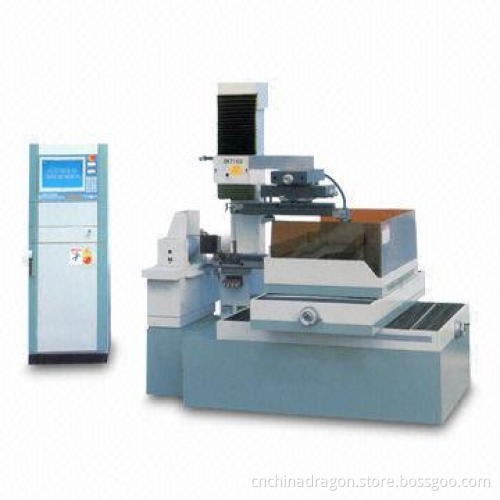

EDM Machine with 630 x 800mm Working Table X/Y Travel
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
---|
Product Description
Product Description
- Table size: 1,100 x 660mm
- Working table travel (X x Y): 630 x 800mm
- Maximum workpiece thickness: 500mm
- Maximum taper angle/plate thickness: ±3°/100mm
- Maximum machining speed: 120mm/minute
- Machining accuracy: octagon ≤0.015
- Machining accuracy: taper ≤0.04
- Maximum working current: 6A
- Roughness, Ra (once cutting): ≤2.5μm
- Roughness, Ra (twice cutting): ≤1.5μm
- Wire diameter (Ф): 0.15 to 0.2mm
- Wire traveling speed: 5 or 11mm/minute
- Load of table: 3,000kg
- Working fluid saponification/liquid
- Working reservoir capacity: 56L
- Power supply: 3N, 380V/50Hz
- Power consumption: 3kVA
- Adjustable wire guide frame
- Machine dimensions: 2,040 x 1,850 x 1,800mm
- Package dimensions: 2,450 x 2,100 x 2,000mm
- Machine weight: 4,500kg
