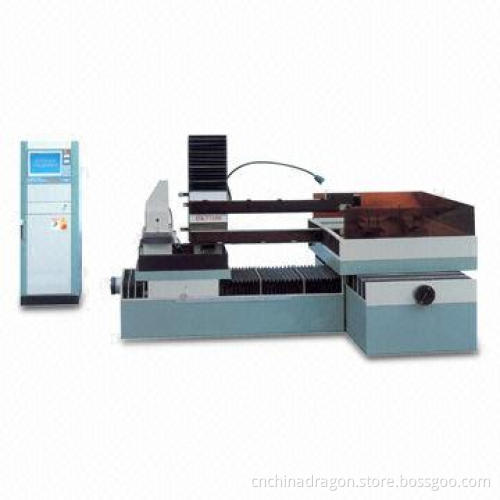

6A EDM Machine with 1,000 x 1,200mm Working Table X/Y Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Table size: 1,600 x 1,090mm

Working table travel (X x Y): 1,000 x 1,200mm

Maximum workpiece thickness: 500mm

Maximum taper angle/plate thickness: ±3°/100mm

Maximum machining speed: 120mm/minute

Machining accuracy: octagon d0.03

Machining accuracy: taper d0.06

Maximum working current: 6A

Roughness, Ra (once cutting): d2.5¼m

Roughness, Ra (twice cutting): d1.5¼m

Wire diameter ($): 0.15 to 0.2mm

Wire traveling speed: 5 or 11mm/minute

Load of table: 5,000kg

Working fluid saponification/liquid

Working reservoir capacity: 110L

Power supply: 3N, 380V/50Hz

Power consumption: 3kVA

Adjustable wire guide frame

Machine dimensions: 2,460 x 2,940 x 1,800mm

Package dimensions: 3,100 x 1,350 x 1,400mm

Machine weight: 7,000kg
