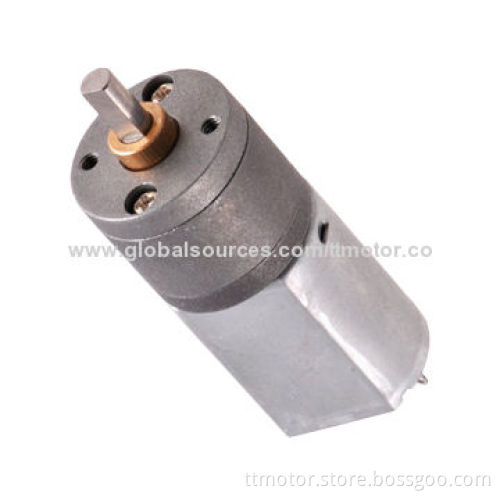

6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size
  • 6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size
  • 6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size
6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size
6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size

6V DC vending machine Gear Motor with Reduction Gear, 20*45mm Size

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Dimensions:
    • Size: 20*45mm
    • Diameter of shaft: 4.0mm
    • Shaft length: 15.9mm, 17.4mm, 18.9mm, 20.4mm or customized
  • Characters:
    • Rated voltage: 6V
    • No loading current: 30mA
    • Stall current: 0.5A
    • No loading speed: 9.2-155rpm
    • Rated speed: 7.8-1,310rpm
    • Rated torque: 0.14-2.1kg.cm
    • Stall torque: 0.75-5kg.cm
    • Reduction ratio:  29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
    • Can match encoder
    • Samples can be sent first and the delivery time is 15-20 days
  • Size: 20*45mm
  • Diameter of shaft: 4.0mm
  • Shaft length: 15.9mm, 17.4mm, 18.9mm, 20.4mm or customized
  • Rated voltage: 6V
  • No loading current: 30mA
  • Stall current: 0.5A
  • No loading speed: 9.2-155rpm
  • Rated speed: 7.8-1,310rpm
  • Rated torque: 0.14-2.1kg.cm
  • Stall torque: 0.75-5kg.cm
  • Reduction ratio:  29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
  • Can match encoder
  • Samples can be sent first and the delivery time is 15-20 days
