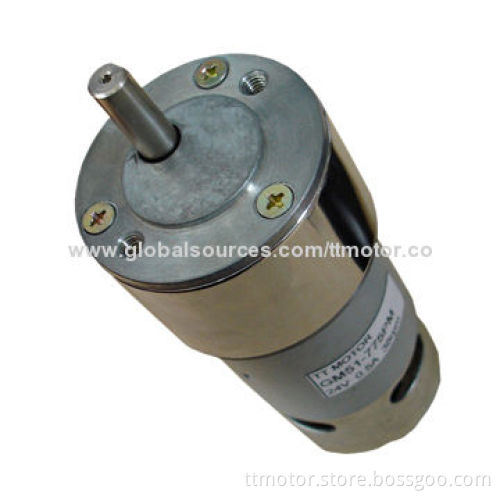

6V 51mm High-torque DC Gear Motor for Slot Machines, with 32A Stall Current
  • 6V 51mm High-torque DC Gear Motor for Slot Machines, with 32A Stall Current
6V 51mm High-torque DC Gear Motor for Slot Machines, with 32A Stall Current

6V 51mm High-torque DC Gear Motor for Slot Machines, with 32A Stall Current

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • Dimension:
    • Size: 51*110mm
    • Diameter of shaft: 7.0mm
    • Shaft length: 21.5mm or customized
  • Characters:
    • Rated voltage: 6V
    • No loading current: 1.2A
    • Stall current: 32A
    • No loading speed: 2-890rpm
    • Rated speed: 1.9-730rpm
    • Rated torque: 3.4-100kgcm
    • Stall torque: 14-300kgcm
    • Reduction ratio: 5.2, 10, 20, 38, 83, 153, 333, 613, 1333, 2453
    • Can match encoder, 3, 12ppr
    • Samples can be sent first and the delivery time is 15-20 days
  • Size: 51*110mm
  • Diameter of shaft: 7.0mm
  • Shaft length: 21.5mm or customized
  • Rated voltage: 6V
  • No loading current: 1.2A
  • Stall current: 32A
  • No loading speed: 2-890rpm
  • Rated speed: 1.9-730rpm
  • Rated torque: 3.4-100kgcm
  • Stall torque: 14-300kgcm
  • Reduction ratio: 5.2, 10, 20, 38, 83, 153, 333, 613, 1333, 2453
  • Can match encoder, 3, 12ppr
  • Samples can be sent first and the delivery time is 15-20 days
