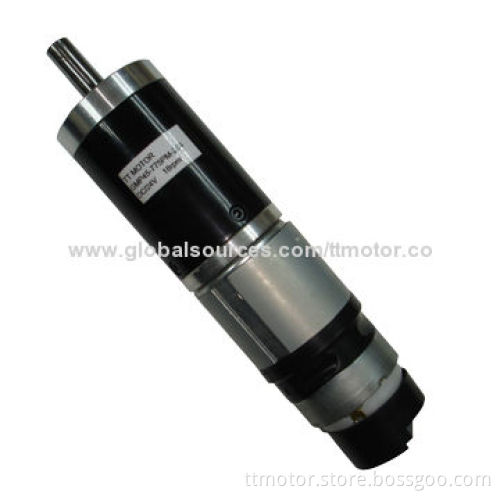

24V Planetary Gear Motor with 45mm Gearbox be Equipped with Encoder
  • 24V Planetary Gear Motor with 45mm Gearbox be Equipped with Encoder
24V Planetary Gear Motor with 45mm Gearbox be Equipped with Encoder

24V Planetary Gear Motor with 45mm Gearbox be Equipped with Encoder

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • Dimensions:
    • Diameter: 45mm
    • Length: about 118.5-141.5mm
    • D-shaft: 10.0mm
    • Shaft length: 27.0mm or customized
  • Specifications:
    • Rated voltage: 24V
    • No loading current: 0.3A
    • Stall current: 7.2A
    • No loading speed: 8.3-1,400rpm
    • Rated speed: 8-1,125rpm
    • Rated torque: 2.8-100kg.cm
    • Stall torque: 11-300kg.cm
    • Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720
    • Samples can be sent first and delivery time is 15-20 days
    • Can match encoder, 3ppr, 12ppr
  • Usage:
    • Medical equipment
  • Diameter: 45mm
  • Length: about 118.5-141.5mm
  • D-shaft: 10.0mm
  • Shaft length: 27.0mm or customized
  • Rated voltage: 24V
  • No loading current: 0.3A
  • Stall current: 7.2A
  • No loading speed: 8.3-1,400rpm
  • Rated speed: 8-1,125rpm
  • Rated torque: 2.8-100kg.cm
  • Stall torque: 11-300kg.cm
  • Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720
  • Samples can be sent first and delivery time is 15-20 days
  • Can match encoder, 3ppr, 12ppr
  • Medical equipment
