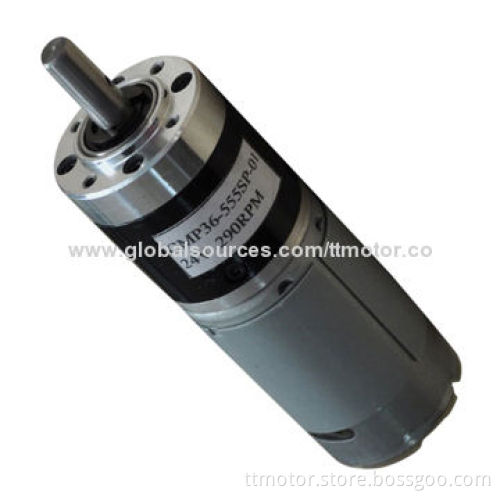

24V 4,000rpm DC Planetary Gear Motor with Encoder
  • 24V 4,000rpm DC Planetary Gear Motor with Encoder
24V 4,000rpm DC Planetary Gear Motor with Encoder

24V 4,000rpm DC Planetary Gear Motor with Encoder

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • Dimensions:
    • Diameter: 35.7mm
    • Length: about 88.5mm
    • D shaft: 8.0mm
    • Shaft length: 20mm or customized
  • Specifications:
    • Rated voltage: 24V
    • No loading current: 150mA
    • Stall current: 2.7A
    • No loading speed: 5.5-980rpm
    • Rated speed: 5-750 rpm
    • Rated torque: 0.64-30kg.cm
    • Stall torque: 3.2-70kg.cm
    • Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
    • Samples can be sent first and delivery time is 15-20 days
    • can match encoder, 3ppr
  • Diameter: 35.7mm
  • Length: about 88.5mm
  • D shaft: 8.0mm
  • Shaft length: 20mm or customized
  • Rated voltage: 24V
  • No loading current: 150mA
  • Stall current: 2.7A
  • No loading speed: 5.5-980rpm
  • Rated speed: 5-750 rpm
  • Rated torque: 0.64-30kg.cm
  • Stall torque: 3.2-70kg.cm
  • Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
  • Samples can be sent first and delivery time is 15-20 days
  • can match encoder, 3ppr
  • Intelligent windows and doors, medical equipment, ATM devices
