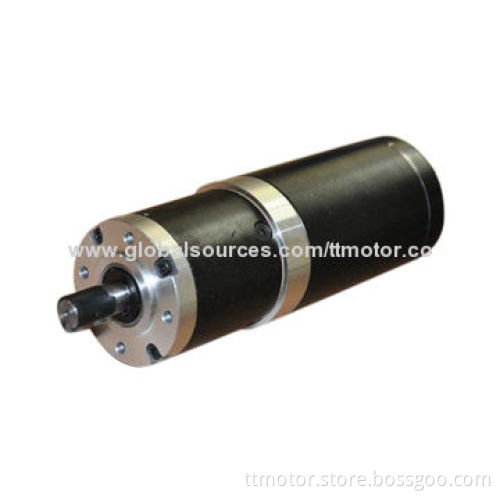

High torque 110kg.cm, 56mm gear motor with planetary gearbox for farming equipment

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal

Product Description

Dimensions:

Characteristics:

Usage:

Size: 56*137.5mm, 137.5mm length min

Shaft diameter: 12mm

Shaft length: 28mm or customized

Rated voltage: 24V

No load current: 0.18mA

Stall current: 5.0A

No load speed: 6-450rpm

Rated speed: 5-390rpm

Rated torque: 2.1-110kg.cm

Stall torque: 9-500kg.cm

Reduction ratio: 4, 13, 15, 19, 47, 55, 65, 77, 168, 198, 234, 276, 326

Samples can be sent first and the delivery time is 15-20 days

Farming equipment

47 medical equipment

ATM devices

Intelligent windows and doors

Paper feeder

Bank equipment

AD equipment

Copy Machine
