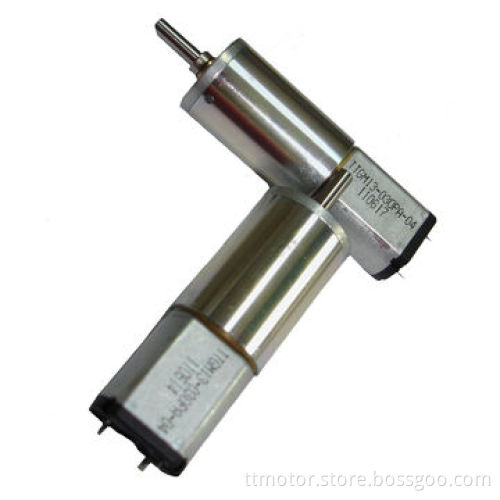

12v 3000rpm dc planetary gear motor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, paypal

Product Description

Diameter: 3mm

Length: about 34--47mm

D shape: 2.8*7.0mm

Shaft length: 11.8mm or customized

Rated voltage: 12V

No loading current: 20mA

Stall current: 0.27A

No loading speed: 6.2-3000rpm

Rated speed: 6.0-2440rpm

Rated torque: 0.016-3kg.cm

Stall torque: 0.07-9kg.cm

Reduction ratio: 4,16,29，62,104,198,231,316,370,455,690,850,1996,3027

can be equipped with encoder, 3ppr

Samples can be sent first and delivery time is 15-20 days

copy machine, medical equipment, md player& recorder, ATM devices
