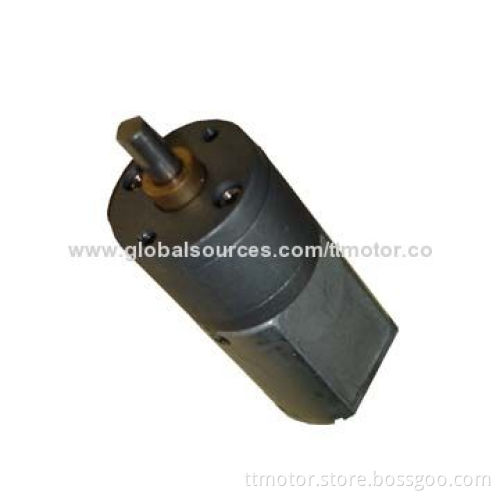

20mm 12V DC Gear Motor with Reduction Gear for window curtain
  • 20mm 12V DC Gear Motor with Reduction Gear for window curtain
  • 20mm 12V DC Gear Motor with Reduction Gear for window curtain
20mm 12V DC Gear Motor with Reduction Gear for window curtain
20mm 12V DC Gear Motor with Reduction Gear for window curtain

20mm 12V DC Gear Motor with Reduction Gear for window curtain

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Dimensions:
    • Size: 20*45mm
    • Diameter of shaft: 4.0mm
    • Shaft length: 15.9, 17.4, 18.9, 20.4mm or customized
  • Characters:
    • Rated voltage: 12V
    • No loading current: 40mA
    • Stall current: 0.7A
    • No loading speed: 18-290rpm
    • Rated speed: 15-235rpm
    • Rated torque: 0.3-3kg.cm
    • Stall torque: 1.4-5kg.cm
    • Reduction ratio:  29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
    • Can match encoder
    • Samples can be sent first and the delivery time is 15-20 days
  • Size: 20*45mm
  • Diameter of shaft: 4.0mm
  • Shaft length: 15.9, 17.4, 18.9, 20.4mm or customized
  • Rated voltage: 12V
  • No loading current: 40mA
  • Stall current: 0.7A
  • No loading speed: 18-290rpm
  • Rated speed: 15-235rpm
  • Rated torque: 0.3-3kg.cm
  • Stall torque: 1.4-5kg.cm
  • Reduction ratio:  29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
  • Can match encoder
  • Samples can be sent first and the delivery time is 15-20 days
