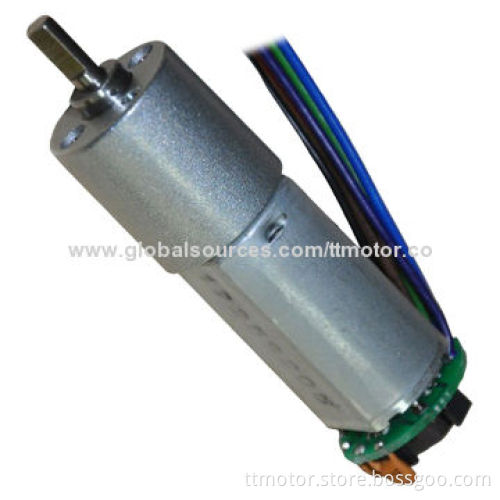

20mm 12V DC Gear Motor with Encoder 3ppr
  • 20mm 12V DC Gear Motor with Encoder 3ppr
  • 20mm 12V DC Gear Motor with Encoder 3ppr
20mm 12V DC Gear Motor with Encoder 3ppr
20mm 12V DC Gear Motor with Encoder 3ppr

20mm 12V DC Gear Motor with Encoder 3ppr

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • Dimensions:
    • Size: 20.0*48.0*16.0 mm
    • Diameter of shaft: 4.0mm
    • Shaft length: 15.9, 17.4, 18.9, 20.4mm or customized
  • Characteristics:
    • Rated voltage: 12V
    • No load current: 25mA
    • Stall current: 0.35A
    • No load speed: 9-145rpm
    • Rated speed: 8-120rpm
    • Rated torque: 0.23-3kg.cm
    • Stall torque: 1.0-5kg.cm
    • Reduction ratio: 29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
    • Can match encoder,3ppr
    • Samples can be sent first and the delivery time is 15-20 days, 0.9
  • Size: 20.0*48.0*16.0 mm
  • Diameter of shaft: 4.0mm
  • Shaft length: 15.9, 17.4, 18.9, 20.4mm or customized
  • Rated voltage: 12V
  • No load current: 25mA
  • Stall current: 0.35A
  • No load speed: 9-145rpm
  • Rated speed: 8-120rpm
  • Rated torque: 0.23-3kg.cm
  • Stall torque: 1.0-5kg.cm
  • Reduction ratio: 29, 31, 56, 73, 78, 107, 140, 182, 195, 268, 349, 456, 488
  • Can match encoder,3ppr
  • Samples can be sent first and the delivery time is 15-20 days, 0.9
