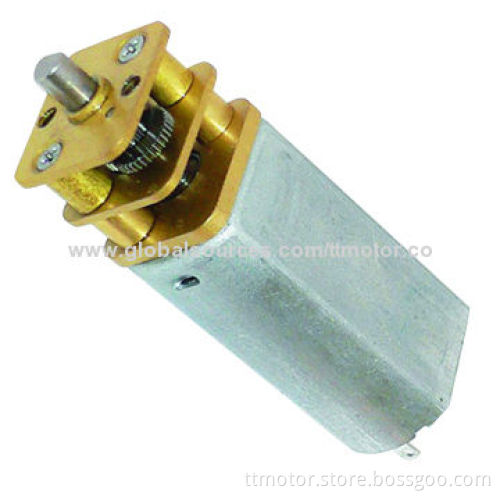

micro gear motor with copper gear case for electirc lock, power lock
  • micro gear motor with copper gear case for electirc lock, power lock
micro gear motor with copper gear case for electirc lock, power lock

micro gear motor with copper gear case for electirc lock, power lock

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Dimensions:
    • Size: 15.5*14*38.7mm
    • Diameter of shaft: 4.0mm
    • Shaft length: 10mm or customized
  • Characters:
    • Rated voltage: 6V
    • No load current: 45mA
    • Stall current: 1.3A
    • No load speed: 35-4,000rpm
    • Rated speed: 31-3,300rpm
    • Rated torque: 0.024-1.0kg.cm
    • Stall torque: 0.12-3kg.cm
    • Reduction ratio: 3, 10, 17, 20, 35, 63, 86, 115, 150, 250, 360
    • Can match encoder
    • Samples can be sent first and the delivery time is 15-20 days
  • Usage:
    • Power lock, electronic ock, optic equipment, micro, mechanism and more1
  • Size: 15.5*14*38.7mm
  • Diameter of shaft: 4.0mm
  • Shaft length: 10mm or customized
  • Rated voltage: 6V
  • No load current: 45mA
  • Stall current: 1.3A
  • No load speed: 35-4,000rpm
  • Rated speed: 31-3,300rpm
  • Rated torque: 0.024-1.0kg.cm
  • Stall torque: 0.12-3kg.cm
  • Reduction ratio: 3, 10, 17, 20, 35, 63, 86, 115, 150, 250, 360
  • Can match encoder
  • Samples can be sent first and the delivery time is 15-20 days
  • Power lock, electronic ock, optic equipment, micro, mechanism and more1
