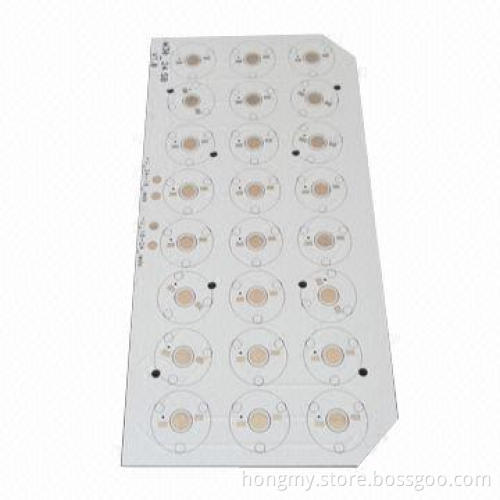

Single-sided Aluminum PCB, Hole Position, Tolerance of 0.075mm
  • Single-sided Aluminum PCB, Hole Position, Tolerance of 0.075mm
Single-sided Aluminum PCB, Hole Position, Tolerance of 0.075mm

Single-sided Aluminum PCB, Hole Position, Tolerance of 0.075mm

Get Latest Price
Payment Type:
L/C or Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C or Western Union or PayPal
Product Description
Product Description
  • Features:
    • Layers: 1 to 16
    • Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon
    • Finish board thickness: 0.2 to 3.2mm
    • External copper thickness: 35 to 210um
    • Internal copper thickness: 17 to 140um
    • Copper plating hole: 18 to 40um
    • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
    • Minimum CNC hole diameter: 0.20mm
    • Minimum punching hole diameter: 0.9mm (35 mils)
    • Maximum panel dimension: 610 x 508mm
    • Hole position tolerance: 0.075mm
    • Hole dimensions tolerance:
      • PTH: 0.075mm
      • NPTH: 0.05mm
    • Outline tolerance:
      • CNC: 0.125mm
      • Punching: 0.15mm
    • Warp and twist: 0.70%
    • Minimum distance between line to board bridge:
      • Outline: 0.25mm
      • V-cut: 0.40mm
    • Impedance control tolerance: ±10%
    • Test voltage: 10 to 300V
  • Layers: 1 to 16
  • Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon
  • Finish board thickness: 0.2 to 3.2mm
  • External copper thickness: 35 to 210um
  • Internal copper thickness: 17 to 140um
  • Copper plating hole: 18 to 40um
  • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
  • Minimum CNC hole diameter: 0.20mm
  • Minimum punching hole diameter: 0.9mm (35 mils)
  • Maximum panel dimension: 610 x 508mm
  • Hole position tolerance: 0.075mm
  • Hole dimensions tolerance:
    • PTH: 0.075mm
    • NPTH: 0.05mm
  • Outline tolerance:
    • CNC: 0.125mm
    • Punching: 0.15mm
  • Warp and twist: 0.70%
  • Minimum distance between line to board bridge:
    • Outline: 0.25mm
    • V-cut: 0.40mm
  • Impedance control tolerance: ±10%
  • Test voltage: 10 to 300V
  • PTH: 0.075mm
  • NPTH: 0.05mm
  • CNC: 0.125mm
  • Punching: 0.15mm
  • Outline: 0.25mm
  • V-cut: 0.40mm
