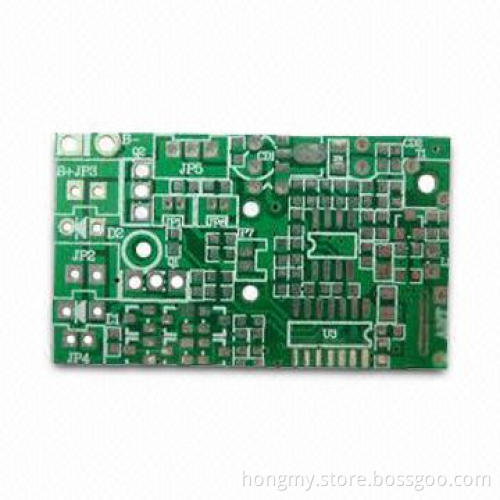

PCB Laminate, Communications 4-layer PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C, Western Union, Paypal

Product Description

Layers: four

Board material: Rogers, high frequency TG, FR-4

Board thickness: 1.6mm

Surface finish: lead-free HASL

Solder mask: blue

Minimum line width/line gap: 10/10 mils

Hongmy PCB capability

Layers: 1 to 16

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimension: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance:

Outline tolerance:

Minimum distance between lines to board bridge:

Outline: 0.25mm

V-cut: 0.40mm

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm

Warp and twist: 0.70%

Minimum solders Mask Bridge: 0.0635mm

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finish: HASL, immersion gold, immersion silver, platedgold, gold finger and OSP
