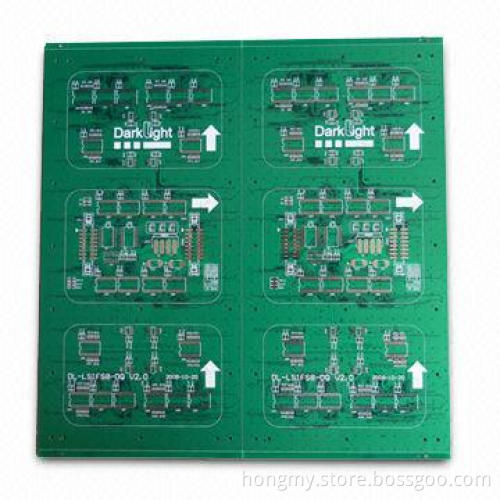

Multi-layered PCB with Lead-free HASL, 1oz Copper Thickness and 0.3mm Minimum Hole Diameter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Manufacture capability:

Base material: FR4

Finishing board thickness: 1.6mm

Copper thickness: 1oz

Hole diameter: 0.3mm (minimum)

Line width: 0.25mm (minimum)

Line spacing: 0.15mm (minimum)

Colors: green on the top side and black on the bottom side

Solder mask types: green, yellow, red, white, blue, mattegreen/black and more

Surface finishing: HASL, immersion silver/gold, gold-plated,gold finger

Layers: 1 to 16

Materials: FR-4, aluminum base, rogers, Taconic

Finishing board thickness: 0.2 to 3.2mm (8 to 126 mils)

External copper thickness: 35 to 210μm

Internal copper thickness: 17 to 140μm

Copper plating hole: 18 to 40μm

Trace width and line spacing: 0.075/0.1mm (3/4 mils)(minimum)

Hole dimensions (CNC): 0.20mm (8 mils) (minimum)

Hole dimensions (punching): 0.9mm (35 mils) (minimum)

Panel dimensions: 610 x 508mm (maximum)

Hole position tolerance (CNC): ±0.075mm

Hole dimensions tolerance (CNC): (PTH) ±0.075mm, (NPTH)±0.05mm

Outline tolerance (CNC): ±0.125mm, (punching)±0.15mm

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between line to board edge: (outline) 0.25mm, (V-cut)0.40mm

Impedance control tolerance: ±10%

Testing voltage: 10 to 300V
