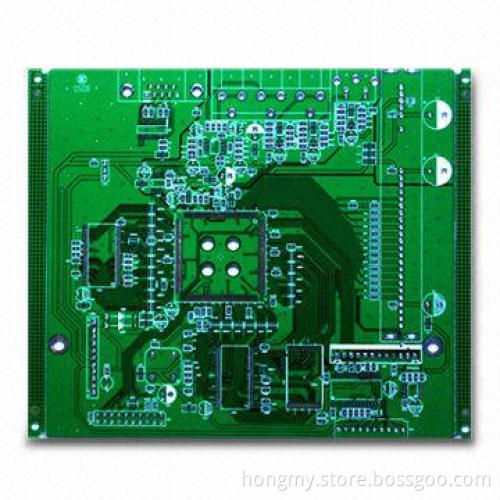

Multilayer PCB with 2.0mm Board Thickness and HASL Surface Finish

Get Latest Price

Payment Type:: T/T, Western Union, L/C, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C, PayPal

Product Description

Features:

Layers: 4
Board thickness: 2.0mm
Cooper thickness: 1oz outer layer, 0.5oz inner layer
Solder mask: green
Surface finishing: HASL
Minimum line width: 0.4mm
Minimum line spacing: 0.2mm
Minimum hole diameter: 0.147mm
Item: manufacture capability
Layers: 1 to 16 layers
Materials: FR-4, aluminum base, Rogers, Taconic
Finish board thicknesses: 0.2 to 3.2mm (8 to 126 mils)
External copper thicknesses: 35 to 210um
Internal copper thicknesses: 17 to 140um
Copper plating hole: 18 to 40um
Minimum trace width and line spacing: 0.075/0.1mm (3/4mils)
Minimum hole dimensions (CNC): 0.20mm (8 mils)
Minimum hole dimensions (punching): 0.9mm (35 mils)
Maximum panel dimensions: 610 x 508mm
Hole position tolerance (CNC): ±0.075mm
Hole dimension tolerance (CNC):
- PTH: ±0.075mm
- NPTH: ±0.05mm
Outline tolerance:
- CNC: ±0.125mm
- Punching: ±0.15mm
Warp and twist: 0.70%
Minimum solder mask bridge: 0.0635mm
Distance between line to board edge:
Outline: 0.25mm
V-CUT: 0.40mm

Impedance control tolerance:±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishing: HASL, immersion silver/gold, plate gold,gold finger

Layers: 4

Board thickness: 2.0mm

Cooper thickness: 1oz outer layer, 0.5oz inner layer

Solder mask: green

Surface finishing: HASL

Minimum line width: 0.4mm

Minimum line spacing: 0.2mm

Minimum hole diameter: 0.147mm

Item: manufacture capability

Layers: 1 to 16 layers

Materials: FR-4, aluminum base, Rogers, Taconic

Finish board thicknesses: 0.2 to 3.2mm (8 to 126 mils)

External copper thicknesses: 35 to 210um

Internal copper thicknesses: 17 to 140um

Copper plating hole: 18 to 40um

Minimum trace width and line spacing: 0.075/0.1mm (3/4mils)

Minimum hole dimensions (CNC): 0.20mm (8 mils)

Minimum hole dimensions (punching): 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance (CNC): ±0.075mm

Hole dimension tolerance (CNC):

PTH: ±0.075mm
NPTH: ±0.05mm

Outline tolerance:

CNC: ±0.125mm
Punching: ±0.15mm

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Distance between line to board edge:

Outline: 0.25mm

V-CUT: 0.40mm

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: ±0.125mm

Punching: ±0.15mm
