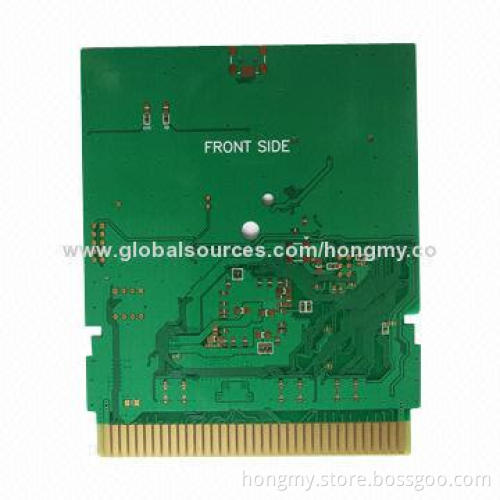

Product Description

Layers count: 2

Board material: FR-4

Board thickness: 1.6mm

Copper thickness: 1oz

Whole diameter: 0.2mm (minimum)

Line width: 0.2mm (minimum)

Line spacing: 0.2mm (minimum)

Surface finishing: HASL + gold fingers/gold contacts

Manufacture capability

Layers: 1 to 16 layers

Materials: FR-4, aluminum base, Rogers, Taconic

Finish board thickness range: 0.2 to 3.2mm (8 to 126-mil)

External copper thickness: 35 to 210um

Internal copper thickness range: 17 to 140um

Copper plating hole range: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4-mil) (minimum)

Hole dimensions (CNC): 0.20mm (8-mil) (minimum)

Hole dimensions (punching): 0.9mm (35-mil) (minimum)

Panel dimensions: 610 x 508mm (maximum)

Hole position tolerance (CNC): ±0.075mm

Hole dimensions tolerance (CNC):

PTH: ±0.075mm
NPTH: ±0.05mm

Outline tolerance:

CNC: ±0.125mm
Punching: ±0.15mm

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between line to board edge:

Outline: 0.25mm
V-cut: 0.40mm

Impedance control tolerance: ±10%

Test voltages: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matte green, matte black and more

Surface finishing: HASL, immersion silver/gold, plate gold and gold finger

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: ±0.125mm

Punching: ±0.15mm

Outline: 0.25mm

V-cut: 0.40mm
