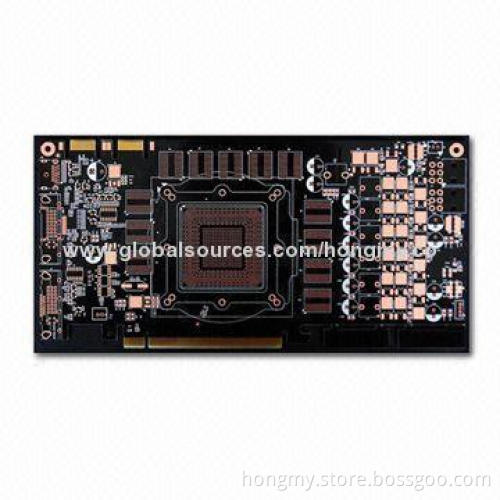

PCB with Black Mask, 10 to 300V Test Voltage
  • PCB with Black Mask, 10 to 300V Test Voltage
PCB with Black Mask, 10 to 300V Test Voltage

PCB with Black Mask, 10 to 300V Test Voltage

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Features:
    • Layers count: multilayer 8-layer PCB
    • Board material: FR4
    • Board thickness: 1.6mm
    • Finished copper thickness: 1oz
    • Minimum drilling diameter: 0.2mm
    • Surface finish: HAL (lead-free)
  • Manufacture capability:
    • Materials: FR-4, CEM-1, aluminum, Rogers, ta-conic, Gerek and Arlon
    • Finish board thickness: 0.2 to 3.2mm
    • External copper thickness: 35 to 210um
    • Internal copper thickness: 17 to 140um
    • Copper plating hole: 18 to 40um
    • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
    • CNC hole diameter: 0.20mm (minimum)
    • Punching hole diameter: 0.9mm (35 mils) (minimum)
    • Panel size: 610 x 508mm (maximum)
    • Hole position tolerance: 0.075mm
    • Hole dimension tolerance: 0.075 (PTH) and 0.05mm (NPTH)
    • Outline tolerance: 0.125 (CNS) and 0.15mm (punching)
    • Warp and twist: 0.70%
    • Solder mask bridge: 0.0635mm (minimum)
    • Distance between lines to board bridge: 0.25 (minimum) (outline) and 0.40mm (v-cut)
    • Impedance control tolerance: ±10%
    • Test voltage: 10 to 300V
    • Solder mask types: green, yellow, red, white, blue, matte green, matte black and more
    • Surface finished: HASL, immersion gold, immersion silver, gold-plated, gold finger and OSP
  • Layers count: multilayer 8-layer PCB
  • Board material: FR4
  • Board thickness: 1.6mm
  • Finished copper thickness: 1oz
  • Minimum drilling diameter: 0.2mm
  • Surface finish: HAL (lead-free)
  • Materials: FR-4, CEM-1, aluminum, Rogers, ta-conic, Gerek and Arlon
  • Finish board thickness: 0.2 to 3.2mm
  • External copper thickness: 35 to 210um
  • Internal copper thickness: 17 to 140um
  • Copper plating hole: 18 to 40um
  • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
  • CNC hole diameter: 0.20mm (minimum)
  • Punching hole diameter: 0.9mm (35 mils) (minimum)
  • Panel size: 610 x 508mm (maximum)
  • Hole position tolerance: 0.075mm
  • Hole dimension tolerance: 0.075 (PTH) and 0.05mm (NPTH)
  • Outline tolerance: 0.125 (CNS) and 0.15mm (punching)
  • Warp and twist: 0.70%
  • Solder mask bridge: 0.0635mm (minimum)
  • Distance between lines to board bridge: 0.25 (minimum) (outline) and 0.40mm (v-cut)
  • Impedance control tolerance: ±10%
  • Test voltage: 10 to 300V
  • Solder mask types: green, yellow, red, white, blue, matte green, matte black and more
  • Surface finished: HASL, immersion gold, immersion silver, gold-plated, gold finger and OSP
