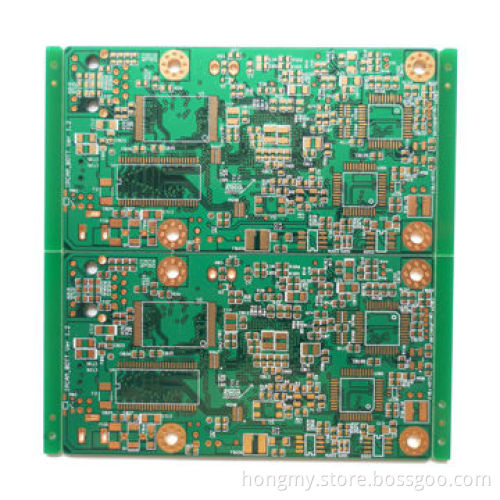

8 layer PCB with FR4 Material, Immersion Gold, 3oz Copper and 1.6mm Finished Board Thickness

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Paypal

Product Description

Base material: FR4

Finished board thickness: 1.6mm

Copper thickness: 3oz

Hole diameter: 0.2mm (minimum)

Line width: 0.1mm (minimum)

Line spacing: 0.1mm (minimum)

Surface finish: immersion gold

Solder mask: green

Layers: 1 to 16

Material: aluminum base, Rogers and Taconic

Finish board thickness: 0.2 to 3.2mm (8 to 126mil)

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Minimum trace width and line spacing: 0.075/0.1mm (3/4mil)

Minimum hole dimensions (CNC): 0.20mm (8mil)

Minimum hole dimensions (punching): 0.9mm (35mil)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance (CNC): ±0.075mm

Hole dimensions tolerance (CNC):

PTH: ±0.075mm
NPTH: ±0.05mm

Outline tolerance:

CNC: ±0.125mm
Punching: ±0.15mm
Warp and twist: 0.70%
Minimum solder mask bridge: 0.0635mm

Distance between line to board edge:

Outline: 0.25mm
V-CUT: 0.40mm

Impedance control tolerance: ±10%

Test voltages: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matt green/black and more

Surface finishes: HASL, immersion silver/gold, plate gold and gold finger

Please contact us for more details
