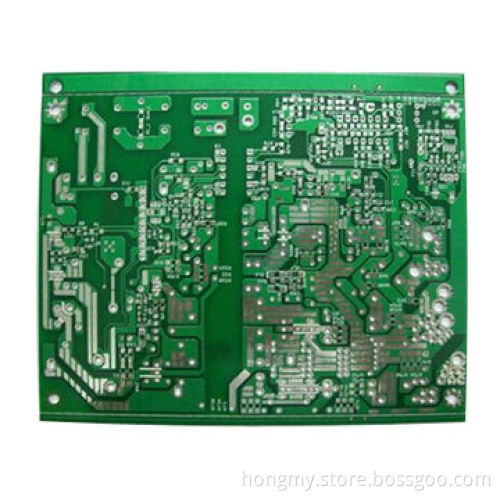

Double-sided PCB with Lead-free HASL and High TG 170 FR4 Based
  • Double-sided PCB with Lead-free HASL and High TG 170 FR4 Based
Double-sided PCB with Lead-free HASL and High TG 170 FR4 Based

Double-sided PCB with Lead-free HASL and High TG 170 FR4 Based

Get Latest Price
Payment Type:
T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or PayPal
Product Description
Product Description
  • With lead-free HASL
  • Base material: FR-4 based with TG170
  • Board thickness:2mm
  • Copper thickness: 2/oz
  • Minimum line width: 8mil
  • Minimum line spacing: 6mil
  • Solder mask color: green
  • With ISO 9001, UL, RoHS and SGS marks
  • Can do:
    • 1 to 16 layer FR-4 PCB board, 1 to 2 layer aluminum PCB
    • 1 to 6oz copper thickness
    • Hole size: 0.2mm
    • Line width/space: 0.1mm
    • Used for wide range of electronic products, like inverter,medical devices, CCTV, power supply, GPS, UPS, set-top box,telecommunication, LED and more
  • Manufacture capability:
    • Number of layer: 1 TO 16 layers
    • Material: FR-4, taconic, rogers, metal-backed laminate
    • Finish board thickness: 0.2 to 3.2mm (8 to 126mil)
    • Minimum core thickness: 0.075mm (3 mil)
    • Copper thickness: 1/2oz (min: 6oz)
    • Minimum width/line spacing: 0.075/0.1mm (3/4mil)
    • Minimum hole diameter for CNC drilling: 0.2mm
    • Maximum fabrication area: 610 x 508mm
    • Conductor width: ±0.05mm (2mil)
    • Original artwork: ±20%
    • Hole diameter PTH: ±0.075mm (3mil)
    • Non-PTH (L): ±0.05mm (2mil)
    • Outline tolerance: ±0.125mm (5mil) CNC routing,±0.15mm (6mil )by punching
    • Warp/twist: 0.70%
    • Insulation resistance: 10 to 20K©
    • Conductivity: <50©
  • 1 to 16 layer FR-4 PCB board, 1 to 2 layer aluminum PCB
  • 1 to 6oz copper thickness
  • Hole size: 0.2mm
  • Line width/space: 0.1mm
  • Used for wide range of electronic products, like inverter,medical devices, CCTV, power supply, GPS, UPS, set-top box,telecommunication, LED and more
  • Number of layer: 1 TO 16 layers
  • Material: FR-4, taconic, rogers, metal-backed laminate
  • Finish board thickness: 0.2 to 3.2mm (8 to 126mil)
  • Minimum core thickness: 0.075mm (3 mil)
  • Copper thickness: 1/2oz (min: 6oz)
  • Minimum width/line spacing: 0.075/0.1mm (3/4mil)
  • Minimum hole diameter for CNC drilling: 0.2mm
  • Maximum fabrication area: 610 x 508mm
  • Conductor width: ±0.05mm (2mil)
  • Original artwork: ±20%
  • Hole diameter PTH: ±0.075mm (3mil)
  • Non-PTH (L): ±0.05mm (2mil)
  • Outline tolerance: ±0.125mm (5mil) CNC routing,±0.15mm (6mil )by punching
  • Warp/twist: 0.70%
  • Insulation resistance: 10 to 20K©
  • Conductivity: <50©
