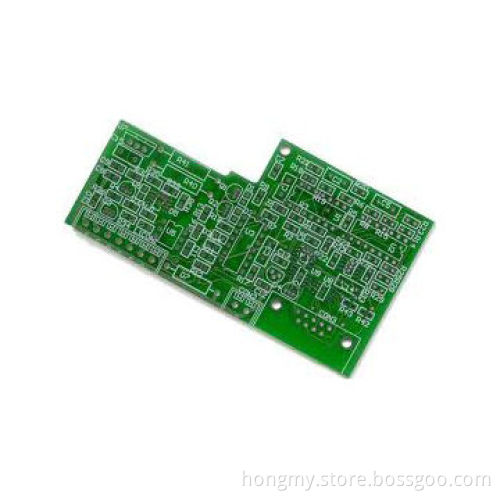

Double-sided Bare PCB with Lead-free HASL

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union or PayPal

Product Description

With lead-free HASL

Base material: FR-4 based with TG170

Board thickness: 1.6mm

Copper thickness: 1/1oz

Minimum line width: 8mil

Minimum line spacing: 6mil

Soldermask color: green

With ISO 9001, UL, RoHS and SGS marks

We can do:

Used for wide range of electronic products, like inverter,medical devices, CCTV, power supply, GPS, UPS, set-top box,telecommunication, LED and more

1 to 16 layer FR-4 PCB board, 1 to 2 layer aluminum PCB

1 to 6oz copper thicknesses

Hole size: 0.2mm

Line width/space: 0.1mm

Manufacture capability:

Number of layer: 1 to 16 layers

Material: FR-4, taconic, rogers, metal-backed laminate

Finishes board thickness: 0.2 to 3.2mm (8 to 126mil)

Minimum core thickness: 0.075mm (3 mil)

Copper thickness: 1/2oz (min: 6oz)

Minimum width/line spacing: 0.075/0.1mm (3/4mil)

Minimum hole diameter for CNC drilling: 0.2mm

Maximum fabrication area: 610 x 508mm

Conductor width: ±0.05mm (2mil)

Original artwork: ±20%

Hole diameter

Outline tolerance: ±0.125mm (5mil) CNC routing,±0.15mm (6mil )by punching

Warp/twist: 0.70%

PTH: ±0.075mm (3mil)

Non-PTH (L): ±0.05mm (2mil)
