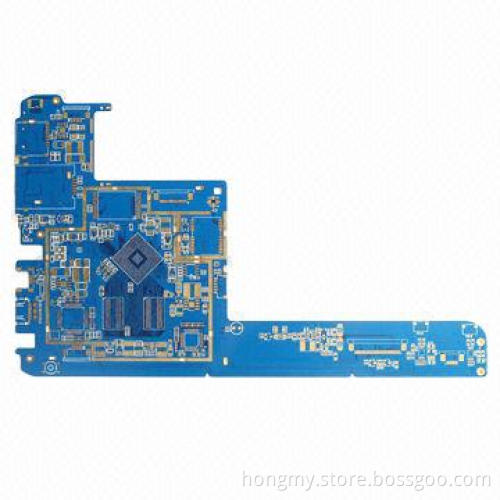

Six-layered PCB with Immersion Gold Surface Finish and 2oz Outer Layer Copper Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,PayPal and Western Union

Product Description

Specifications:

Number of layers: six/1 to 16 layers
Base material: FR4
Finished board thickness: 1.6mm
Copper thickness:
- Outer layer: 2oz
- Inner layer: 1oz
Hole size: 0.11mm (minimum)
Line width: 0.075mm (minimum)
Line spacing: 0.1mm (minimum)
Surface finish: immersion gold
Manufacture capability
Item manufacture capability
Materials: FR-4, aluminum base, Rogers and Taconic
Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)
External copper thickness: 35 to 210um
Internal copper thickness: 17 to 140um
Copper plating hole: 18 to 40um
Minimum trace width and line spacing: 0.075/0.1mm (3/4mils)
Minimum hole dimension: 0.20mm (8 mils) (CNC)
Minimum hole dimension: 0.9mm (35 mils) (punching)
Maximum panel dimensions: 610 x 508mm
Hole position tolerance: ±0.075mm (CNC)
Hole dimension tolerance (CNC):
- PTH: ±0.075mm
- NPTH: ±0.05mm
Outline tolerance:
- CNC: ±0.125mm
- Punching: ±0.15mm
Warp and twist: 0.70%
Minimum solder mask bridge: 0.0635mm
Distance between lines to board edge outline: 0.25mm
V-cut: 0.40mm
Impedance control tolerance: ±0%
Test voltage: 10 to 300V
Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more
Surface finishing: HASL, immersion silver/gold, plate gold andgold finger
