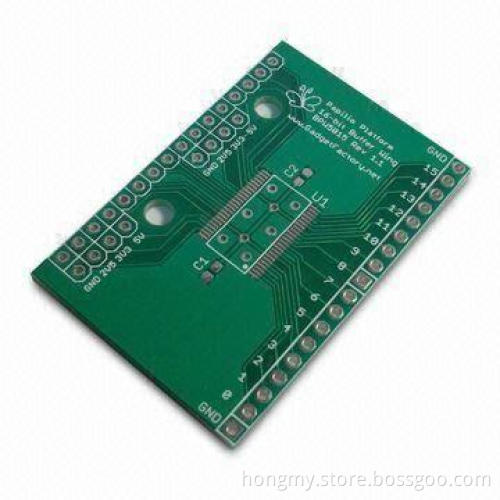

Two-layered PCB with Green Solder Mask and 1.6mm Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C, Western Union

Product Description

Specifications:

Surface finishing: HASL
Layers: 1 to 16
Materials: FR-4, aluminum base, Rogers and Taconic
Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)
External copper thickness: 35 to 210μm
Internal copper thickness: 17 to 140μm
Copper plating hole: 18 to 40um
Trace width and line spacing: 0.075/0.1mm (3/4 mils)(minimum)
Hole dimension (CNC): 0.20 (8 mils) (minimum)
Hole dimension (punching): 0.9mm (35 mils) (minimum)
Panel dimension: 610 x 508mm (maximum)
Hole position tolerance (CNC): ±0.075mm
Hole dimension tolerance (CNC):
- PTH: ±0.075mm
- NPTH: ±0.05mm
Outline tolerance:
- CNC: ±0.125mm
- Punching: ±0.15mm
Warp and twist: 0.70%
Solder mask bridge: 0.0635mm (minimum)
Distance between line to board edge:
- Outline: 0.25mm
- V-CUT: 0.40mm
Impedance control tolerance: ±10%
Test voltage: 10 to 300V
Solder mask types: green, yellow, red, white, blue, Matt green,Matt black and more
Surface finishing: HASL, immersion silver/gold, plate gold andgold finger
