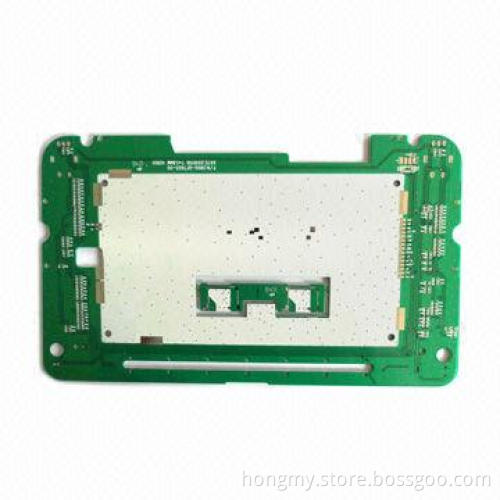

FR4 Based Double-sided PCB with 0.2 to 3.2mm Finished Board Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT in Advance, L/C, Western Union, PayPal

Product Description

Layers: 1 to 16

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon

Finishing board thickness: 0.2 to 3.2mm

With 2 colors of solder mask

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3 to 4-mil)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35 mils) (minimum)

Panel dimension: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between line to board bridge (minimum):

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishing: HASL, immersion gold, immersion silver,plated gold, gold finger and OSP

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm

Outline: 0.25mm

V-cut: 0.40mm
