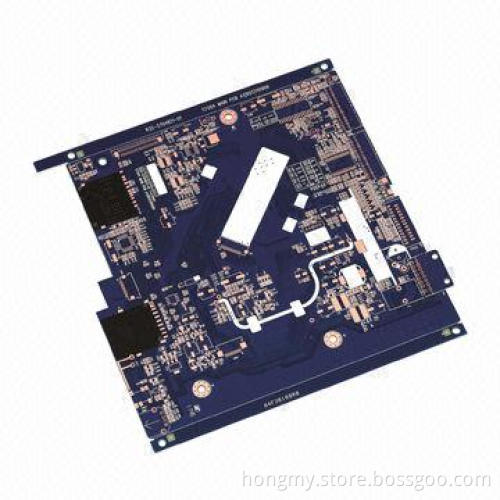

FR4 Rigid PCB with Blue Solder Mask and HASL Finish 1.6mm Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Paypal or Western Union

Product Description

Specifications:

Outline tolerance:

CNC: 0.125mm

Punching: 0.15mm

Number of layers: 2

Base material: FR4

Copper thickness: 1oz

Board thickness: 1.6mm

Hole size: 0.3mm (minimum)

Line width: 0.2mm (minimum)

Line spacing: 0.2mm (minimum)

Surface finishing: lead-free HASL

Hongmy manufacture capability

Layers: 1 to 16 layers

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek andArlon

Finish board thickness: 0.2 to 3.2mm

External copper thicknesses: 35 to 210um

Internal copper thicknesses: 17 to 140um

Copper plating holes: 17 to 40um

Trace width and line spacing: 0.075/0.1mm (3 mils/4-mil)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35-mil)

Panel dimensions: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

Hole dimensions tolerance:

PTH: 0.075mm

NPTH: 0.05mm

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm

Min distance between line to board bridge:

Outline: 0.25mm

V-cut: 0.40mm

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishing: HASL, immersion gold, immersion silver, goldplated, gold finger and OSP
