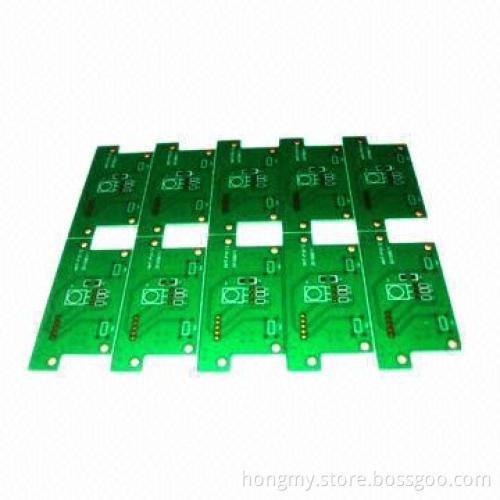

Double-sided PCB with 1oz Copper Thickness and 0.5mm Minimum Hole Diameter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Specifications:

Copper thickness:

Minimum width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum hole diameter for CNC drilling: 0.2mm

Maximum fabrication area: 610 x 508mm

Conductor width (W): ±0.05mm (2 mils)

±20% of original artwork

Hole diameter (H):

Outline tolerance: ±0.125mm (5 mils) CNC routing,±0.15mm (6 mils) by punching

Warp and twist: 0.70%

Insulation resistance: 10K to 20MΩ

Conductivity: <50Ω

Test voltage: 10 to 300V

Certificates: UL, RoHS

Number of layers: 1 to 16

Materials: FR-4, Taconic, Rogers, metal-backed laminate

Finishing board thickness: 0.2 to 3.2mm (8 to 126 mils)

Minimum core thickness: 0.075mm (3 mils)

Finished board thickness: 1.6mm

Copper thickness: 6oz

Minimum hole diameter: 0.5mm

Minimum line width: 0.7mm

Minimum line spacing: 0.2mm

Surface finishing: HASL

Solder mask: green

Maximum: 1/2oz

Minimum: 6oz

PTH L: ±0.075mm (3 mils)

Non-PTH L: ±0.05mm (2 mils)
