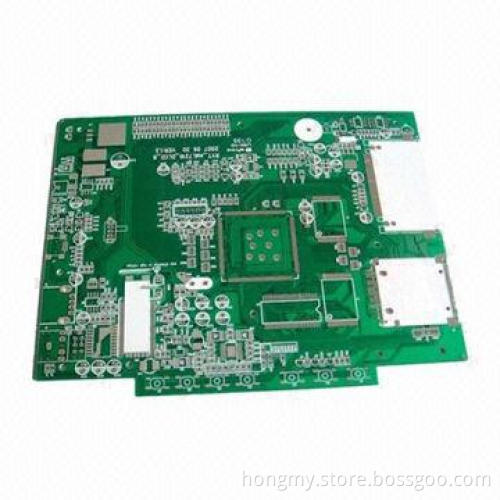

Double-sided PCB with 2.0mm Board Thickness Finished

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, PayPal or Western Union

Product Description

4-layer PCB

Base material: FR-4 based with TG150

Board thickness: 2mm

Copper thickness: 2/2/2/2 oz

Min line width: 8mil

Min line spacing: 10mil

Soldermask color: green

With UL, RoHS, SGS marks

Manufacturing capacity:

Hole diameter(H):

Outline tolerance:

Warp and twist: 0.70%

Insulation resistance: 10K© to 20M©

Conductivity: <50©

Number of layer: 1 to 16 layers

Material: FR-4, taconic, rogers, metal-backed Laminate

Finish board thickness: 0.2 to 3.2mm (8 to 126mil)

Minimum core thickness: 0.075mm (3mil)

Copper thickness: min 1/2oz, max 6oz

Min. width and line spacing: 0.075mm/0.1mm (3mil/4mil)

Min. hole diameter for CNC drilling: 0.2mm

Max. fabrication area: 610 x 508mm

Conductor width: +/-0.05mm(2mil); +/-20% of originalartwork

PTH L: +/-0.075mm (3mil)

Non-PTH L: +/-0.05mm (2mil)

+/-0.125mm(5mil) CNC routing

+/-0.15mm(6mil)by punching
