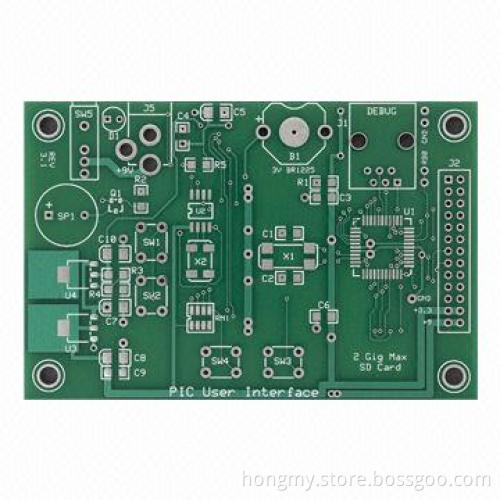

Double Sided PCB with HAL Surface and Green Solder Mask

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T ，Paypale, Western Union

Product Description

Layer: 2 layers

Board thickness: 1.0 mm

Copper thickness: 1 oz

Minimum line width: 0.2 mm

Minimum line spacing: 0.2 mm

Minimum hole diameter: 0.2 mm

Surface finishing: HASL LF

Solder mask: green

Capability:

Material: FR4, aluminum base, rogers and taconic

Finish board thickness: 0.2 to 3.2mm (8 to 126mil)

External copper thickness: 35 to 210μm

Internal copper thickness: 17 to 140μm

Copper plating hole: 18 to 40μm

Minimum trace width and line spacing: 0.075/0.1mm (3/4mil)

Minimum hole dimension (CNC): 0.20mm (8mil)

Minimum hole dimension (punching): 0.9mm (35mil)

Maximum panel dimension: 610 x 508mm

Hole position tolerance (CNC): ±0.075mm

Hole dimension tolerance (CNC):

Outline tolerance:

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: +±0.125mm

Punching: ±0.15mm
