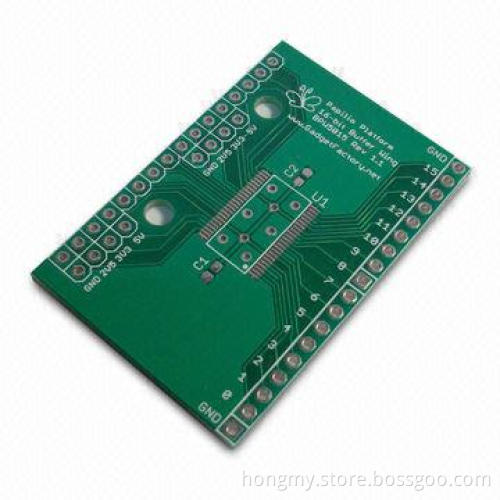

Two-layer PCB with Green Solder Mask and Gold Plating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Layers: 1 to 16

Materials: FR-4, aluminum base, Rogers and Taconic

Finishing board thickness: 0.2 to 3.2mm (8 to 126 mils)

External copper thickness: 35 to 210μm

Internal copper thickness: 17 to 140μm

Copper plating hole: 18 to 40um

Trace width/line spacing: 0.075/0.1mm (3/4 mils) (minimum)

Hole dimensions (CNC): 0.20 (8 mils) (minimum)

Hole dimensions (punching): 0.9mm (35 mils) (minimum)

Panel dimensions: 610 x 508mm (maximum)

Hole position tolerance (CNC): ±0.075mm

Hole dimension tolerance (CNC):

Outline tolerance:

Warp and twist: 0.70%

Solder mask bridge: 0.0635mm (minimum)

Distance between line to board edge:

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finishing: HASL, immersion silver/gold, plate gold andgold finger

PTH: ±0.075mm

NPTH: ±0.05mm

CNC: ±0.125mm

Punching: ±0.15mm

Outline: 0.25mm

V-cut: 0.40mm
