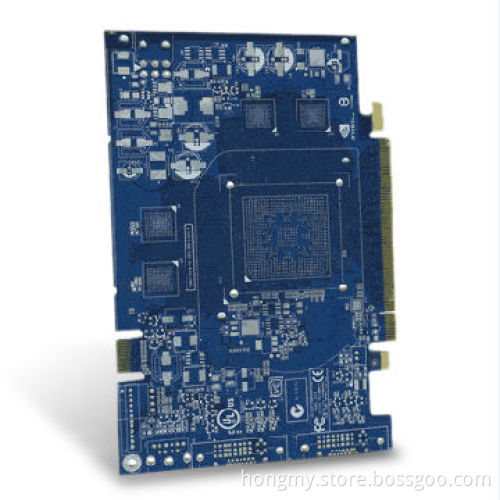

Double-sided PCB with HAL Surface Finish and 1.0mm Board Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Layers: 2
Board material: FR-4
Board thickness: 1.0mm
Finish copper thickness: 1oz
Minimum drilling diameter: 0.3mm
Minimum line width: 0.2mm
Surface finish: HAL (lead-free)
Manufacture capability
Item manufacture capability
Layers: 1 to 16 layers
Material: FR-4, aluminum base, rogers and taconic
Finish board thicknesses: 0.2 to 3.2mm (8 to126mil)
External copper thicknesses: 35 to 210um
Internal copper thicknesses: 17 to 140um
Copper plating holes: 18 to 40um
Minimum trace width and line spacing: 0.075/0.1mm (3/4mil)
Minimum hole dimensions (CNC): 0.20mm (8mil)
Minimum hole dimensions (punching): 0.9mm (35mil)
Maximum panel dimensions: 610 x 508mm
Hole position tolerance (CNC): ±0.075mm
Hole dimension tolerance (CNC): PTH: ±0.075mm, NPTH: ±0.05mm
Outline tolerance CNC: ±0.125mm, punching: ±0.15mm
Warp and twist: 0.70%
Minimum solder mask bridge: 0.0635mm
Distance between line to board edge outline: 0.25mm, v-cut: 0.40mm
Impedance control tolerance: ±10%
Test voltages: 10 to 300V
Solder mask types: green, yellow, red, white, blue, matt green, matt black and more
Surface finishing: HASL, immersion silver/gold, plate gold and gold finger
