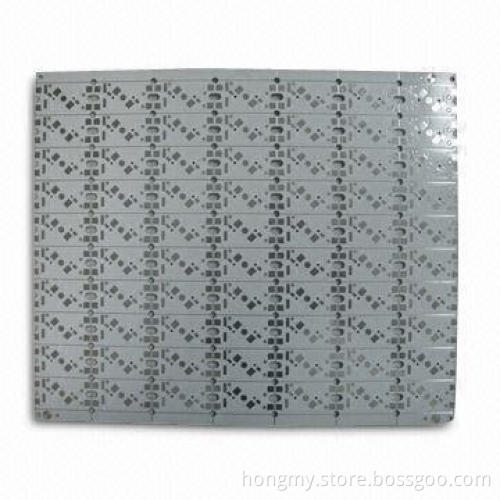

Small Size Aluminum Base with High Thermal Conductivity LED Lighting PCB
  • Small Size Aluminum Base with High Thermal Conductivity LED Lighting PCB
Small Size Aluminum Base with High Thermal Conductivity LED Lighting PCB

Small Size Aluminum Base with High Thermal Conductivity LED Lighting PCB

Get Latest Price
Payment Type:
T/T in Advance, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, L/C or Western Union
Product Description
Product Description
  • Features:
    • Layers: 1 to 16
    • Materials: FR-4, CEM-1 and aluminum
    • Finish board thickness: 0.2 to 3.2mm
    • External copper thickness: 35 to 210μm
    • Internal copper thickness: 17 to 140μm
    • Copper plating hole: 18 to 40μm
    • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
    • Minimum CNC hole diameter: 0.20mm
    • Minimum punching hole diameter: 0.9mm (35 mils)
    • Maximum panel dimensions: 610 x 508mm
    • Hole position tolerance: 0.075mm
    • Hole dimension tolerance:
      • PTH: 0.075mm
      • NPTH: 0.05mm
    • Outline tolerance:
      • CNC: 0.125mm
      • Punching: 0.15mm
    • Warp and twist: 0.70%
    • Minimum distance between line to board bridge:
      • Outline: 0.25mm
      • V-cut: 0.40mm
    • Impedance control tolerance: ±10%
    • Test voltage: 10 to 300V
    • Solder mask types: green, yellow, red, white, blue, mattegreen, matte black, and more
    • Surface finishing: HASL, immersion gold, immersion silver,plated gold, gold finger, and OSP
  • Applications:
    • CCTVs, DVD players, mobile phones, LCD molds, stereo,Bluetooth, computers and more
  • Layers: 1 to 16
  • Materials: FR-4, CEM-1 and aluminum
  • Finish board thickness: 0.2 to 3.2mm
  • External copper thickness: 35 to 210μm
  • Internal copper thickness: 17 to 140μm
  • Copper plating hole: 18 to 40μm
  • Trace width and line spacing: 0.075/0.1mm (3/4 mils)
  • Minimum CNC hole diameter: 0.20mm
  • Minimum punching hole diameter: 0.9mm (35 mils)
  • Maximum panel dimensions: 610 x 508mm
  • Hole position tolerance: 0.075mm
  • Hole dimension tolerance:
    • PTH: 0.075mm
    • NPTH: 0.05mm
  • Outline tolerance:
    • CNC: 0.125mm
    • Punching: 0.15mm
  • Warp and twist: 0.70%
  • Minimum distance between line to board bridge:
    • Outline: 0.25mm
    • V-cut: 0.40mm
  • Impedance control tolerance: ±10%
  • Test voltage: 10 to 300V
  • Solder mask types: green, yellow, red, white, blue, mattegreen, matte black, and more
  • Surface finishing: HASL, immersion gold, immersion silver,plated gold, gold finger, and OSP
  • PTH: 0.075mm
  • NPTH: 0.05mm
  • CNC: 0.125mm
  • Punching: 0.15mm
  • Outline: 0.25mm
  • V-cut: 0.40mm
  • CCTVs, DVD players, mobile phones, LCD molds, stereo,Bluetooth, computers and more
