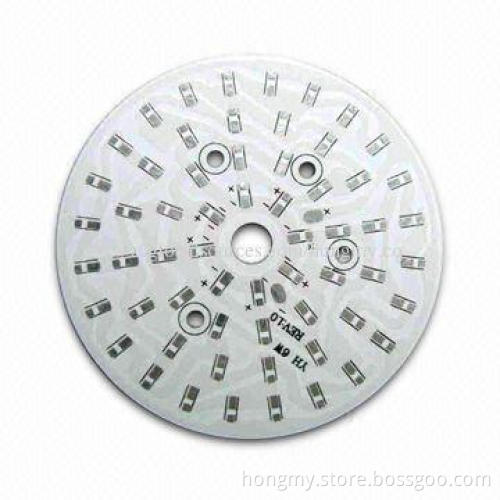

LED Aluminum PCB with White Solder Mask, Immersion Silver

Get Latest Price

Payment Type:: TT, L/C, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C, Western Union, PayPal

Product Description

Specifications:

HASL lead-free
Line width/space: 0.3/0.3mm (minimum)
Certifications: UL, SGS marks
With RoHS Directive-compliant
Board thickness: 0.4 to 3.2mm
Line width: 0.1mm (minimum)
Line spacing: 0.1mm (minimum)
Hole size: 0.2mm (minimum)
Aluminum/copper/iron base board
Surface finishing
With white solder mask
HASL/immersion tin/gold-plating/OSP/immersion silver
Layers: 1 to 12
Dimension: 1,100 x 480mm (maximum)
Dimension: 5 x 5mm (minimum)
Trace and line spacing: 0.1mm (minimum)
Warp and twist
<0.5mm (thickness: 1.6mm, dimensions: 300 x 300mm)
Finishing product thickness: 0.2 to 4.5mm
Copper thickness: 18, 35, 70, 105, 140um
Hole inner copper thickness: 18 to 40um
Hole position tolerance: ±0.075mm
Punching hole diameter (minimum)
Board thickness: <1.0: 1.0mm
Board thickness: 1.2 to 3.0: 1.5mm

The minimum punching square slot specifications:

Board thickness <1.0: 0.8 x 0.8mm
Board thickness: 1.2 to 3.0: 1.0 x 1.0mm
Silk prints circuit tolerance: ±0.075mm
Outline tolerance: CNC: ±0.1mm, mold: ±0.75mm
Hole size: 0.2mm (minimum)
No limitation in maximum hole dimension
V-cut angle deviation: ±0.5 degrees
V-cut board thickness range: 0.6 to 3.2mm
Component mark character style: 0.15mm (minimum)
Open window for pads: 0.01mm (minimum)
Solder mask: green, white, blue, matte black and gray

HASL lead-free

Line width/space: 0.3/0.3mm (minimum)

Certifications: UL, SGS marks

With RoHS Directive-compliant

Board thickness: 0.4 to 3.2mm

Line width: 0.1mm (minimum)

Line spacing: 0.1mm (minimum)

Hole size: 0.2mm (minimum)

Aluminum/copper/iron base board

Surface finishing

With white solder mask

HASL/immersion tin/gold-plating/OSP/immersion silver

Layers: 1 to 12

Dimension: 1,100 x 480mm (maximum)

Dimension: 5 x 5mm (minimum)

Trace and line spacing: 0.1mm (minimum)

Warp and twist

<0.5mm (thickness: 1.6mm, dimensions: 300 x 300mm)

Finishing product thickness: 0.2 to 4.5mm

Copper thickness: 18, 35, 70, 105, 140um

Hole inner copper thickness: 18 to 40um

Hole position tolerance: ±0.075mm

Punching hole diameter (minimum)

Board thickness: <1.0: 1.0mm

Board thickness: 1.2 to 3.0: 1.5mm

Board thickness <1.0: 0.8 x 0.8mm

Board thickness: 1.2 to 3.0: 1.0 x 1.0mm

Silk prints circuit tolerance: ±0.075mm

Outline tolerance: CNC: ±0.1mm, mold: ±0.75mm

Hole size: 0.2mm (minimum)

No limitation in maximum hole dimension

V-cut angle deviation: ±0.5 degrees

V-cut board thickness range: 0.6 to 3.2mm

Component mark character style: 0.15mm (minimum)

Open window for pads: 0.01mm (minimum)

Solder mask: green, white, blue, matte black and gray
