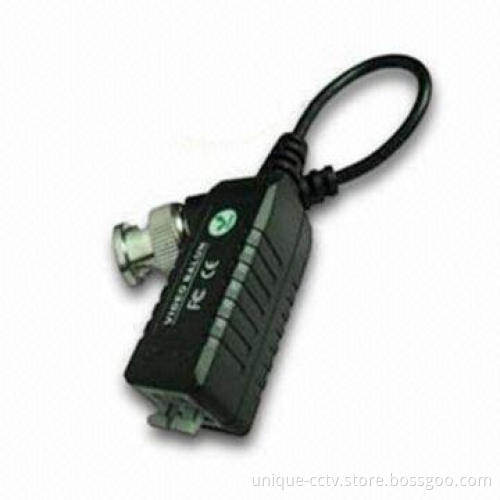

Video Balun, Measures 50 x 16.5 x 22mm, with 400 to 600m Transmission Distance
  • Video Balun, Measures 50 x 16.5 x 22mm, with 400 to 600m Transmission Distance
Video Balun, Measures 50 x 16.5 x 22mm, with 400 to 600m Transmission Distance

Video Balun, Measures 50 x 16.5 x 22mm, with 400 to 600m Transmission Distance

Get Latest Price
Payment Type:
Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Western Union
Product Description
Product Description
  • 1 channel passive video transceiver
  • Video transmission via UTP CAT5 cable
  • Transmission distance: 400 to 600m
  • Interface: twisted pair entrelec, video BNC (male) x no power required
  • Frequency response: DC to 5MHz
  • Attenuation: 0.5dB type
  • Common-mode/differential-mode rejection: 15kHz to 5MHz 60dB type
  • Impedance: 75 (coax) 100Ω (UTP)
  • Network wiring: unshielded twisted pairs 24 to 16AWG (0, 5-1, 31mm) 5 or better
  • Category type: 5 or better
  • Impedance: 100 ± 20Ω
  • DC loop resistance: 52Ω/1,000ft or 18Ω/100m
  • Differential capacitance: 19pF/ft maximum or 62pF/m maximum
  • Transient: suppress
  • Difference module: 4000V 10/700us
  • Environmental:
    • Temperature: -20 to +75°C
    • Humidity 0 to 95% (non-condensing)
    • Storage temperature: -40 to +150°C
  • Dimensions: 50 x 16.5 x 22mm (terminal not included)
  • Temperature: -20 to +75°C
  • Humidity 0 to 95% (non-condensing)
  • Storage temperature: -40 to +150°C
