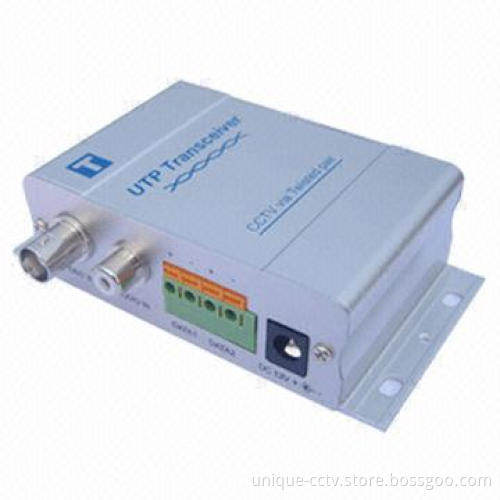

1-channel Active Video and Audio, 2-channels Data or Power Transceiver
  • 1-channel Active Video and Audio, 2-channels Data or Power Transceiver
1-channel Active Video and Audio, 2-channels Data or Power Transceiver

1-channel Active Video and Audio, 2-channels Data or Power Transceiver

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • 1 channel active video and audio, 2 channels data or power transceiver
    • This device is capable of receiving and transmitting video/audio/power/PTZ signal over UTP cable
  • Technique information:
    • Model: UV-UTP14
    • Specification: 1CH active video/data/transceiver
    • Video frequency response:DC-6MHz common-mode/differential-mode
    • Rejection: 15KHz, 6MHz, 60dB typical
    • Audio/data: yes (audio: 14dB)
    • Power: 12V DC
    • Impedance coax, male BNC: 75ΩUTP (screwless) terminal block or UTP RJ45
    • Data connector: 100Ω
    • Wire type: one unshielded twisted pair 24 to 16AWG (0.5 to 1.31mm) per video signal: DC loop Resistance: 52Ω per 1,000ft (18Ω per 100m)
    • Surge suppression: 6,000V 1.2μS x 5μS
    • Control: brightness and sharpness
    • UTP port: terminal block
    • Dimensions: 103 x 70 x 30mm
    • Weight: 110g
    • Environment temperature: -10 to 50°C
    • Humidity: 0 to 95%
  • 1 channel active video and audio, 2 channels data or power transceiver
  • This device is capable of receiving and transmitting video/audio/power/PTZ signal over UTP cable
  • Model: UV-UTP14
  • Specification: 1CH active video/data/transceiver
  • Video frequency response:DC-6MHz common-mode/differential-mode
  • Rejection: 15KHz, 6MHz, 60dB typical
  • Audio/data: yes (audio: 14dB)
  • Power: 12V DC
  • Impedance coax, male BNC: 75ΩUTP (screwless) terminal block or UTP RJ45
  • Data connector: 100Ω
  • Wire type: one unshielded twisted pair 24 to 16AWG (0.5 to 1.31mm) per video signal: DC loop Resistance: 52Ω per 1,000ft (18Ω per 100m)
  • Surge suppression: 6,000V 1.2μS x 5μS
  • Control: brightness and sharpness
  • UTP port: terminal block
  • Dimensions: 103 x 70 x 30mm
  • Weight: 110g
  • Environment temperature: -10 to 50°C
  • Humidity: 0 to 95%
