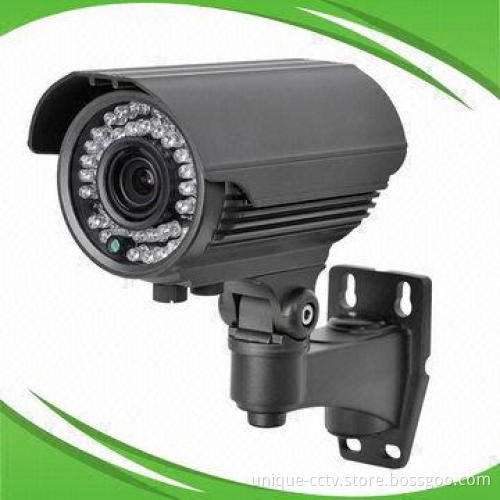

H.264 Professional IP Camera with 1/3" 2 Megapixel High Resolution CMOS

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

1/3" 2 megapixel high resolution CMOS, max image resolution 1,920 x 1,080p @25fps
H.264 main profile @ level 3.0 coding, real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
Support color/BW mode converting, IR-cut filter
Build in motion detection, support alarm linkage, bi-directional real time audio transmission and alarm input and output is optional, auto-retrieve function and auto-connection network
Support plug-and-play, including PC surveillance platform and mobile client, easy to remote
Integrated ONVIF standard, compatibility with third-party ONVIF platform software
PoE is optional
IP66 rated waterproof, outdoor use

Specifications:

Model UV-IPBH02
Hardware processor: GM8126
Sensor 1/3" 2.0 megapixel high definition CMOS
Lens: optional 4/6/8mm 3 Megapixel fixed CS lens
IR LED 36pcs 5mm LEDs, IR Distance 25~35m
Day/night: IR-cut
Minimum illumination: 0.5lux; 0 lux with IR on
Maximum S/N ratio: 50dB
Video compression: H.264
Image:
- Main streams: 1,920 x 1,080 @ 1-25fps and 1,280 x 1,080 @ 1-25fps,
- Sub streams: 640 x 480@1-25fps and 320 x 240 @ 1-25fps
Bit rate range: 128~4096kbps, supports CBR/VBR
Image control: hue, saturation, brightness, contrast and exposure
Auto image controls: AE and AWB

Audio (optional)

Compression: G.711-A

Bit rate: 64kbps/128kbps

Talk-back: supported

Network protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP

Compliance: ONVIF 2.1(1.02 backward compatible)

PC client and browser ISS, IE6.0 and above

Mobile phone iPhone, iPad, Android

WiFi Encryption WAP, WAP2

Audio input (optional): 1CH 3.5mm audio interface, MIC IN/LINE IN

Audio output(optional): 1CH 3.5mm audio interface

LAN: 1 RJ45 10m/100m Ethernet port

Working temperature range: -10 ~ 55℃

Working humidity range: 0 - 90%

Protection level: IP66 rated waterproof

Power supply: DC 12V/1A

Power consumption: maximum 6W

Approvals: CE, FCC, RoHS

1/3" 2 megapixel high resolution CMOS, max image resolution 1,920 x 1,080p @25fps

H.264 main profile @ level 3.0 coding, real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable

Support color/BW mode converting, IR-cut filter

Build in motion detection, support alarm linkage, bi-directional real time audio transmission and alarm input and output is optional, auto-retrieve function and auto-connection network

Support plug-and-play, including PC surveillance platform and mobile client, easy to remote

Integrated ONVIF standard, compatibility with third-party ONVIF platform software

PoE is optional

IP66 rated waterproof, outdoor use

Model UV-IPBH02

Hardware processor: GM8126

Sensor 1/3" 2.0 megapixel high definition CMOS

Lens: optional 4/6/8mm 3 Megapixel fixed CS lens

IR LED 36pcs 5mm LEDs, IR Distance 25~35m

Day/night: IR-cut

Minimum illumination: 0.5lux; 0 lux with IR on

Maximum S/N ratio: 50dB
