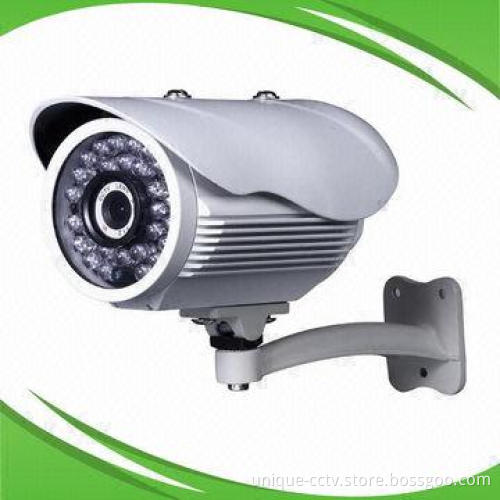

1/4-inch 1.0 Megapixel H.264 Professional IP Camera with 36pcs 8mm LEDs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

H.264 main profile at level 3.0 coding, real-time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
Supports color/BW mode converting, IR-cut filter
Built-in motion detection, supports alarm linkage, bi-directional real time audio transmission and alarm input and output is optional
Auto-retrieve function and auto-connection network
Poe is optional
Ideal for outdoor use

Specifications:

Processor: GM8126
Sensor: 1/4-inch 1.0 megapixel CMOS sensor
Lens optional: 4/6/8mm 3-megapixel fixed CS lens
IR LED: 36pcs 8mm LEDs, 35-50m IR distance
Day/night: IR-cut
Minimum illumination: 0.5 lux, 0 lux with IR on
Maximum S/N ratio: 50dB
Video:
- Compression: H.264
- Image:
  - Main stream: 1280 x 720 at 1-25fps
  - Sub stream: 640 x 360 at 1-25fps, 320 x 180 at 1-25fps
- Bit rate: 128-4096kbps, supports CBR/VBR
Image control: hue, saturation, brightness, contrast, exposure
Auto image control: AE, AWB
Audio (optional):
- Compression: G.711-A
- Bit rate: 64/128Kbps
- Talkback supported
Network:
- Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
- Compliance ONVIF 2.1 (1.02 backward compatible)
- PC client and browser: ISS, IE6.0 and above
- Mobile phone: iPhone, iPad, Android
- Wi-Fi encryption: WAP, WAP2
Interface:
- Audio input (optional): 1CH 3.5mm audio interface, mic in/line in
- Audio output (optional): 1CH 3.5mm audio interface
- LAN: 1 RJ45 10M/100M Ethernet port
General:
- Working temperature: -10 to 55°C
- Working humidity 0-90%
- Protection level: IP66 rated waterproof
- Power supply: DC 12V/1A
- Power consumption: maximum 6W
- Approvals: CE, FCC, RoHS

H.264 main profile at level 3.0 coding, real-time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable

Supports color/BW mode converting, IR-cut filter

Built-in motion detection, supports alarm linkage, bi-directional real time audio transmission and alarm input and output is optional

Auto-retrieve function and auto-connection network

Poe is optional

Ideal for outdoor use

Processor: GM8126

Sensor: 1/4-inch 1.0 megapixel CMOS sensor

Lens optional: 4/6/8mm 3-megapixel fixed CS lens

IR LED: 36pcs 8mm LEDs, 35-50m IR distance

Day/night: IR-cut

Minimum illumination: 0.5 lux, 0 lux with IR on

Maximum S/N ratio: 50dB

Video:

Compression: H.264
Image:
- Main stream: 1280 x 720 at 1-25fps
- Sub stream: 640 x 360 at 1-25fps, 320 x 180 at 1-25fps
Bit rate: 128-4096kbps, supports CBR/VBR

Image control: hue, saturation, brightness, contrast, exposure

Auto image control: AE, AWB

Audio (optional):

Network:

Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
Compliance ONVIF 2.1 (1.02 backward compatible)
PC client and browser: ISS, IE6.0 and above
Mobile phone: iPhone, iPad, Android
Wi-Fi encryption: WAP, WAP2

Interface:
