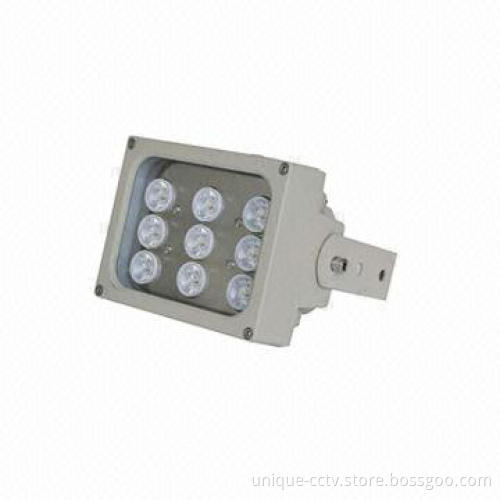

CCTV Infrared High-power 9-piece LED IR Illuminator, 24W Power Consumption

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Accurate constant driver circuit develops excellent performance of LED
Dot matrix super power LED brings high-efficacy, low-light decay and long service lifespan
More energy-saving by power factor correction, PF: 0.9-0.98
IP66 waterproof and -40 to +55℃ working temperature

Technical specifications:

LED type: 9 pieces of 2W dot-matrix IR LEDs
Wavelength: 850/940nm
Beam angle: 15-90°
Beam distance: 180-90m
Bracket: wall mount bracket
Working voltage: 85-265V AC/12-24V DC/24V AC
Power consumption: 24W
Day/night switch: auto
Working temperature: -40 to +55℃
Protection level: IP66
Color: beige
Panel: tempered glass panel
Housing: aluminum die-casting housing
Net/gross weight: 1.4/1.7kg
Dimensions: 135 x 110 x 91mm
Packing dimensions: 180 x 190 x 135mm
Beam angle and viewing distance (850nm):
- 15°: 180m
- 30°: 160m
- 45°: 140m
- 60°: 110m
- 90°: 90m
Viewing distance is tested by Watec/WAT-902H 1/3-inch CCD camera
To achieve the distance needed, please pay attention to your camera specification and lens before purchase, it is normal phenomenon that distance may vary due to different cameras and lens

Accurate constant driver circuit develops excellent performance of LED

Dot matrix super power LED brings high-efficacy, low-light decay and long service lifespan

More energy-saving by power factor correction, PF: 0.9-0.98

IP66 waterproof and -40 to +55℃ working temperature

LED type: 9 pieces of 2W dot-matrix IR LEDs

Wavelength: 850/940nm

Beam angle: 15-90°

Beam distance: 180-90m

Bracket: wall mount bracket

Working voltage: 85-265V AC/12-24V DC/24V AC

Power consumption: 24W

Day/night switch: auto

Working temperature: -40 to +55℃

Protection level: IP66

Color: beige

Panel: tempered glass panel

Housing: aluminum die-casting housing

Net/gross weight: 1.4/1.7kg

Dimensions: 135 x 110 x 91mm

Packing dimensions: 180 x 190 x 135mm

Beam angle and viewing distance (850nm):

15°: 180m
30°: 160m
45°: 140m
60°: 110m
90°: 90m

Viewing distance is tested by Watec/WAT-902H 1/3-inch CCD camera

To achieve the distance needed, please pay attention to your camera specification and lens before purchase, it is normal phenomenon that distance may vary due to different cameras and lens

15°: 180m

30°: 160m

45°: 140m

60°: 110m

90°: 90m
